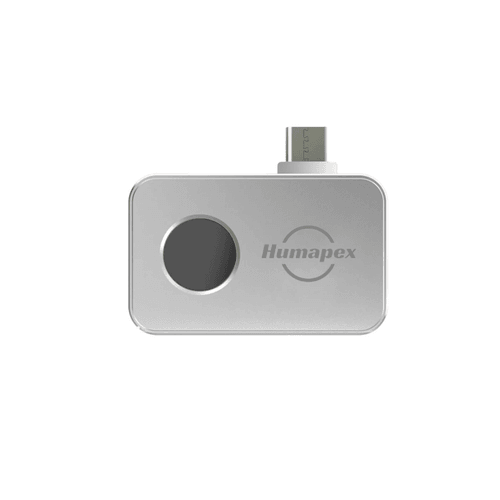

01_HM-Mini

$190.00 - $660.00

02_HM-Ux

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane <br>Infrared Image Resolution: 256x192 / 384x288 / 640x512 <br>Pixel Pitch: 12μm <br>Operating Wavelength: 8~14μm <br>NETD: ≤50mK@25°C, @F/1.0 <br>Image Frame Rate: ≤50Hz <br>Focus Mode: Manual <br>Color Palette: White Hot, Black Hot, Rainbow, Hot Metal, Yellow Saturation, Bird Watching Mode (Default: White Hot) <br>Lens Aperture: F/1.0 <br>Focal Length: 6.8mm / 9.1mm /13mm

$190.00 - $550.00

03_HM-Fx

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane <br>Infrared Image Resolution: 256x192 / 384x288 / 640x512 <br>Pixel Pitch: 12μm <br>Operating Wavelength: 8~14μm <br>NETD: ≤50mK@25°C, @F/1.0 <br>Image Frame Rate: ≤50Hz <br>Focus Mode: Manual <br>Color Palette: White Hot, Black Hot, Rainbow, Hot Metal, Yellow Saturation, Bird Watching Mode (Default: White Hot) <br>Lens Aperture: F/1.0 <br>Focal Length: 6.8mm / 9.1mm /13mm

$359.00 - $499.00

04_HM-Vx

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane <br>Infrared Image Resolution: 256x192 / 384x288 / 640x512 <br>Pixel Pitch: 12μm <br>Operating Wavelength: 8~14μm <br>NETD: ≤50mK@25°C, @F/1.0 <br>Image Frame Rate: ≤50Hz <br>Focus Mode: Manual <br>Color Palette: White Hot, Black Hot, Rainbow, Hot Metal, Yellow Saturation, Bird Watching Mode (Default: White Hot) <br>Lens Aperture: F/1.0 <br>Focal Length: 6.8mm / 9.1mm /13mm

$420.00 - $825.00

05_HM-H4D

IR Resolution: 160 × 120 (VOx Sensor)<br>Thermal Sensitivity (NETD): < 40mk<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±2℃ or ±2%<br>Modes: Center Point & Auto Hot/Cold Spot Tracking<br>Display: 2.8" Color Screen<br>Image Modes: Thermal, Visible Light, and Dual-light Fusion<br>Palettes: 5 types (Rainbow, Iron, White Hot, etc.)<br>Storage: Internal 4G EMMC (Store JPG/MP4)<br>Interface: Type-C (Charging & Data Export)<br>Battery Life: 2–3 hours (2000mAh 18650 Li-ion)

06_HM-H18+

IR Resolution: 256 × 192 (VOx Sensor)<br>Thermal Sensitivity (NETD): < 50mk<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±2℃ or ±2%<br>Modes: Center Point & Auto Hot/Cold Spot Tracking<br>Display: 3.2" Color Screen<br>Image Modes: Thermal, Visible Light, and Dual-light Fusion<br>Palettes: 5 types (Rainbow, Iron, White Hot, etc.)<br>Storage: Internal 8G EMMC (Store JPG/MP4)<br>Interface: Type-C (Charging & Data Export)<br>Battery Life: 2–3 hours (2000mAh 18650 Li-ion)

07_HM-H10

IR Resolution: 256 × 192 (VOx Sensor)<br>Thermal Sensitivity (NETD): < 50mk<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±2℃ or ±2% (from -15℃ to 550℃)<br>Modes: Center Point & Auto Hot/Cold Spot Tracking<br>Display: 3.2" Color Scree<br>Image Modes: Thermal, Visible Light, and Dual-light Fusion<br>Palettes: 5 types (Rainbow, Iron, White Hot, etc.)<br>Special Function: WIFI Supported (Wireless connectivity)<br>Storage: Internal 8G EMMC (Store JPG/MP4)<br>Interface: Type-C (Charging & Data Export)<br>Battery Life: > 4 hours (3000mAh 26650 Li-ion)

08_HM-H8

IR Resolution: 384 × 288 (VOx Sensor)<br>Thermal Sensitivity (NETD): < 50mk (Standard Professional Grade)<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±3%<br>Modes: Center Point & Auto Hot/Cold Spot Tracking<br>Focusing Method: Manual Focus (For sharper imaging)<br>Display: 3.5" Large Color Screen<br>Image Modes: Thermal, Visible Light, and Dual-light Fusion<br>Palettes: 5 types (Rainbow, Iron, White Hot, etc.)<br>Special Function: WIFI Supported (Wireless connectivity)<br>Storage: Internal 8G EMMC (Store JPG/MP4)<br>Interface: Type-C (Charging & Data Export)<br>Battery Life: 3–4 hours (5000mAh 26650 Li-ion)

09_HM-HA2+

IR Resolution: 256 × 192 (VOx Sensor)<br>Thermal Sensitivity (NETD): < 50mk<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±2℃ or ±2% (-15~300℃); ±4% (Other ranges)<br>Modes: Center Point & Auto Hot/Cold Spot Tracking<br>Display: 3.2" Color Screen<br>Image Modes: Thermal, Visible Light, and Dual-light Fusion<br>Palettes: 5 types (Rainbow, Iron, White Hot, etc.)<br>Special Function: WIFI Supported & Built-in LED Flashlight<br>Storage: Internal 16G EMMC (Approx. 13.9G available)<br>Interface: Type-C (Charging & Data Export)<br>Battery Life: 2–3 hours (3000mAh Li-ion)

10_HM-M1

IR Resolution: 256 × 192 (VOx Sensor)<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 550℃<br>Accuracy: ±2℃ or ±2% (from -10℃ to 550℃)<br>Modes: Point, Line, and Area Measurement<br>Palettes: 9 types (White Hot, Black Hot, Iron, Red Hot, Rainbow 1-5)<br>Storage: JPG / MP4 Format Supported<br>Operating Temperature: -10℃ to 75℃ (High-temp resistance)<br>Storage Temperature: -45℃ to 85℃<br>Interface: Type-C / DC 5V Power Supply<br>Menu Languages: Chinese, English, Russian

11_HM-M3

IR Resolution: 384 × 288 (VOx Sensor)<br>Frame Rate: ≤ 25Hz (Smooth imaging)<br>Temperature Range: -20℃ to 400℃<br>Accuracy: ±3℃ or ±3%<br>Focusing Method: Manual Focus (13mm Lens for detailed inspection)<br>Modes: Point, Line, and Area Measurement<br>Palettes: Multiple Pseudo-color Palettes (White Hot, Black Hot, Rainbow, etc.)<br>Storage: JPG / MP4 Format Supported<br>Operating Temperature: -10℃ to 50℃<br>Storage Temperature: -20℃ to 60℃<br>Interface: Type-C / DC 3.8~5.5V Power Supply<br>Menu Languages: Chinese, English

12_HM-A6/A7

Infrared resolution: 256×192 /384× 288<br>Pixel size: 12μ m<br>Working band: 8~14μ m<br>NEDT: ＜ 40mk @ 25℃ , F#1.0<br>Frame rate: ≤50Hz<br>Display screen type: OLED<br>Display resolution: 1440× 1080<br>Display screen size: 0.39 inches<br>Electronic zoom: 1× /2× /4× /8×<br>Color palette: Rainbow, Iron red, Cold color, White hot, Black hot, Fiery hot<br>Hotspot tracking, Picture in picture: Supported<br>Language: Chinese, English, German<br>Storage capacity: Built-in 16G eMMC<br>Photography, video recording: Supported<br>Hotspot tracking, Picture in picture: Supported<br>Image/video format: JPG/MP4<br>USB interface: Charging/exporting pictures and videos<br>Removable rechargeable lithium battery: 18650 1400mAh× 2<br>Battery life: ≥5 hours<br>Protection level: IP66<br>Operating temperature: -20℃ ~ +60℃<br>Storage temperature: -30℃ ~ +70℃

$699.00 - $1,150.00

13_HM-C18/C19

Infrared resolution: 384×288 /640× 512<br>Pixel size: 12μ m<br>Working band: 8~14μ m<br>NEDT: ＜ 40mk @ 25℃ , F#1.0<br>Frame rate: ≤50Hz<br>Display screen type: OLED<br>Display resolution: 1440× 1080<br>Display screen size: 0.39 inches<br>Electronic zoom: 1× /2× /4× /8×<br>Color palette: Rainbow, Iron red, Cold color, White hot, Black hot, Fiery hot<br>Hotspot tracking, Picture in picture: Supported<br>Language: Chinese, English, German<br>Storage capacity: Built-in 16G eMMC<br>Photography, video recording: Supported<br>Hotspot tracking, Picture in picture: Supported<br>Image/video format: JPG/MP4<br>USB interface: Charging/exporting pictures and videos<br>Removable rechargeable lithium battery: 18650 1400mAh× 2<br>Battery life: ≥5 hours<br>Protection level: IP66<br>Operating temperature: -20℃ ~ +60℃<br>Storage temperature: -30℃ ~ +70℃

$1,399.00 - $2,499.00

14_HM-C18L/C19L

Laser ranging: 1200 meters<br>Infrared resolution: 384×288/640x512 infrared focal plane<br>Pixel size: 12μ m<br>NEDT: ＜ 40mk @ 25℃, F#1.0<br>Frame rate: ≤50Hz<br>Focus mode: Manual focus<br>Display screen type: OLED<br>Display resolution: 1440× 1080<br>Display screen size: 0.39 inches<br>Electronic zoom: 1× /2× /4× /8×<br>Color palette: Rainbow, Iron red, Cold color, White hot, Black hot, Fiery hot<br>Hot spot tracking, Picture in picture: Supported<br>Language: Chinese, English, German<br>Storage capacity: Built-in 16G eMMC<br>Photography, video recording: Supported<br>Image/video format: JPG/MP4<br>USB interface: Charging/exporting pictures and videos<br>Removable rechargeable lithium battery: 18650 1400mAh× 2<br>Battery life: ≥5 hours<br>Protection level: IP66<br>Operating temperature: -20℃ ~ +60℃<br>Storage temperature: -30℃ ~ +70℃

$1,499.00 - $2,799.00

15_HM-A16/A30

IR Resolution: 384 × 288 / 640×512 (12μm VOx Sensor)<br>Thermal Sensitivity (NETD): < 40mk<br>Frame Rate: 50Hz (High-speed real-time imaging)<br>Focusing Method: Manual Focus (16mm Eyepiece, 12.5X Magnification)<br>Display: 0.39" OLED Screen (1024 × 768 Resolution)<br>Digital Zoom: 2× / 4×<br>Palettes: 6 types (Rainbow, Iron, Cold, White Hot, Black Hot, Red Hot)<br>Special Function: WIFI, Laser Pointer, and LED Flashlight<br>Storage: Internal 16G EMMC (Approx. 13.8G available; JPG/MP4)<br>Interface: Type-C & CVBS Video Output<br>Battery Life: ≥ 5 hours (3500mAh 18650 Li-ion)<br>Protection Level: IP65<br>Operating Temperature: -20℃ to +60℃

$959.00 - $1,499.00

16_HM-C600/C640

IR Resolution:384×288 / 640 × 512 (12μm VOx Sensor)<br>Optical Sensor: Ultra-low light CMOS (1920 × 1080 Resolution)<br>Thermal Sensitivity (NETD): < 50mk<br>Frame Rate: ≤ 50Hz (High-speed real-time imaging)<br>Focusing Method: Motorized Focus (Electric adjustment)<br>Display: 0.39" OLED Screen<br>Display Modes: Thermal, Low-light, Fusion, and PIP (Picture-in-Picture)<br>Digital Zoom: 1X / 2X / 4X<br>Palettes: Rainbow, Iron, Cold, White Hot, Black Hot<br>Special Function: 2.4G WIFI Image Transfer, Photo & Video Recording<br>Battery Life: ≥ 6 hours (4 × 2000mAh 18650 Swappable Batteries)

$2,699.00 - $3,019.00

17_HM-C680/C690

Laser Rangefinder: Up to 2500 meters<br>IR Resolution: 640 × 512 (12μm VOx Sensor)<br>Optical Sensor: Ultra-low light CMOS (1920 × 1080 Full HD)<br>Thermal Sensitivity (NETD): < 50mk<br>Frame Rate: ≤ 50Hz (High-speed real-time imaging)<br>Focusing Method: Motorized Focus (Electric adjustment)<br>Display: 0.39" OLED Screen<br>Display Modes: Thermal, Low-light, Fusion, and PIP (Picture-in-Picture)<br>Digital Zoom: 1X / 2X / 4X<br>Palettes: Rainbow, Iron, Cold, White Hot, Black Hot<br>Special Function: 2.4G WIFI Image Transfer, Photo & Video Recording<br>Battery Life: ≥ 6 hours (4 × 2000mAh 18650 Swappable Batteries)

$3,019.00 - $3,300.00

18_HM-CAM

R Resolution: 256 × 192 / 384 × 288 / 640 × 512 (VOx Uncooled Sensor) <br>Optical Resolution: 1920 × 1080 (Full HD Visible Light) <br>Frame Rate: 25Hz <br>Focusing Method: Fixed (Athermalized Lens) <br>Intelligent Functions: Multi-target Heat Source Detection: Real-time tracking of thermal targets.<br>Perimeter Prevention: Intrusion detection and tripwire alerts.<br>Over-temperature Alarm: Instant notification for abnormal heat signatures.<br>Display Modes: Thermal, Visible Light, and Bi-spectrum Image Fusion.<br>Edge Intelligence: On-device processing for intelligent event detection and automatic alarms.<br>Network: Supports wireless 4G/WIFI and Ethernet connection.<br>Storage: Supports local Micro SD card storage.<br>Protection Level: IP66 (Weatherproof for outdoor use).<br>Operating Temp: -20℃ to +60℃.<br>Application Fields: Power plants, warehouses, forest fire prevention, docks, and airports.

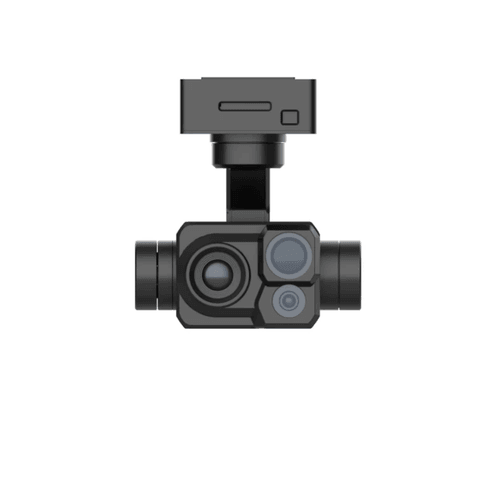

19_HM-DG1

Dual Visible Light System:<br>Wide-Angle Camera: 48MP, 1/2.0" CMOS, F/1.8 Aperture<br>Telephoto Camera: 8MP, 1/1.79" CMOS, up to 54x Digital Zoom<br>Video Quality: 4K (3840×2160) @ 30fps Ultra-HD recording<br>IR Resolution: 640 × 512 / 384 × 288 (12μm VOx Sensor)<br>Accuracy: ±2℃ or ±2%<br>Range: -20℃ to 150℃ (High Gain) / -20℃ to 450℃ (Low Gain)<br>Stability: 3-axis mechanical gimbal with ±0.005° jitter suppression<br>Rotation: Pitch -135° to +30°, Yaw -100° to +100°<br>Weight: Ultra-lightweight design at only 16.5g<br>Wireless Transmission:<br>Max Range: Up to 20km (FCC unobstructed)<br>Frequency: 5.725 GHz to 5.850 GHz (Supports Wi-Fi protocol)<br>Supports Spot/Area temperature measurement<br>Flat-Field Calibration (FFC): Auto/Manual

20_HM-D01

Flight Performance:<br>Max Flight Time: 30–35 minutes (No wind)<br>Max Horizontal Speed: 15 m/s (GPS Mode)<br>Wind Resistance: Up to 10 m/s<br>Max Range: Up to 17km (10km FCC unobstructed signal)<br>Precision Positioning:<br>Hover Accuracy: Vertical ±0.1m; Horizontal ±0.3m (with vision positioning)<br>Positioning System: Integrated high-precision GNSS positioning<br>Remote Controller:<br>Display: 5.5-inch 1080P screen with 1000 nits high brightness<br>Endurance: 9600mAh Li-ion battery for extended operation<br>Operating Temperature: -10°C to 40°C
