Power Grid
Common equipment selection
Panoramic Gimbal HSD-INV-A
Dual-spectrum 360° pan-tilt-zoom (PTZ) system provides comprehensive fire detection with a maximum radius of 6km,
enabling perimeter protection and powerful event recognition and detection.
Dual-light gun HSD-INV-Mini
High-resolution thermal imaging enables focused monitoring of fixed scenes with a wide field of view, providing a broad monitoring range and requiring fewer
monitoring points to accurately identify overheating and thermal defects, and enabling timely early warning.
HSD-INV-RT high-speed PTZ camera
A high-speed dual-spectrum PTZ camera with a 150°/s speed capability enables rapid multi-point and multi-directional scanning, suitable for real-time monitoring and perimeter defense in complex scenarios, and boasts superior event recognition and detection.
HSD-INV-Micro dual-lens flashlight
Compact and low-power, it provides focused monitoring in fixed scenarios with a wide field of view,
enabling accurate identification of overheating and thermal defects with a small number of monitoring points and timely warnings.
Integrated Module HSD-INV-TBL

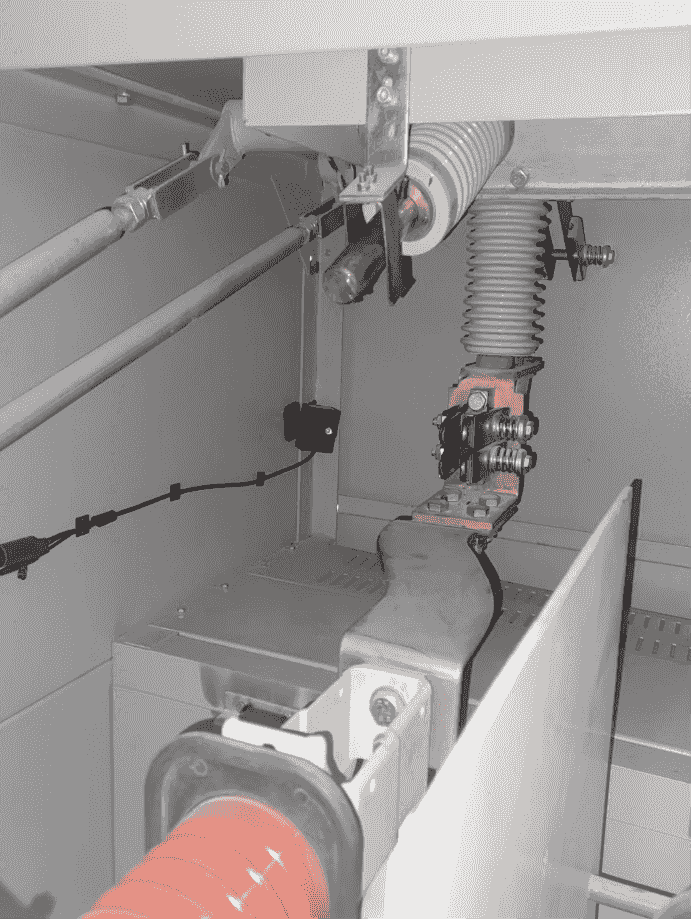

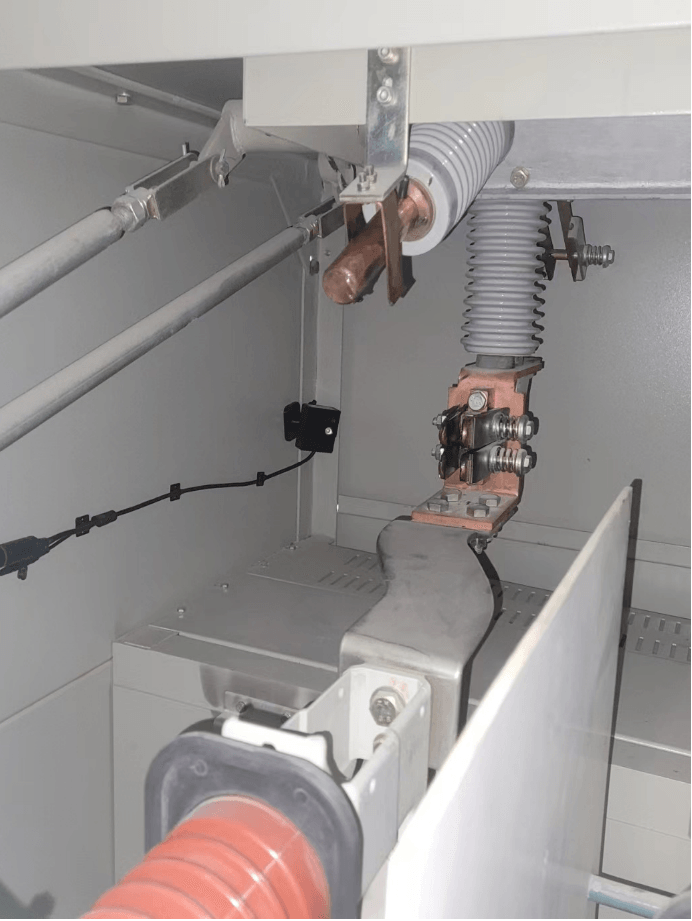

Dedicated for cabinet monitoring, easy to insert, one unit manages one cabinet, non-contact monitoring of equipment operation within the cabinet, visual fence function to identify biological intrusion within the cabinet.

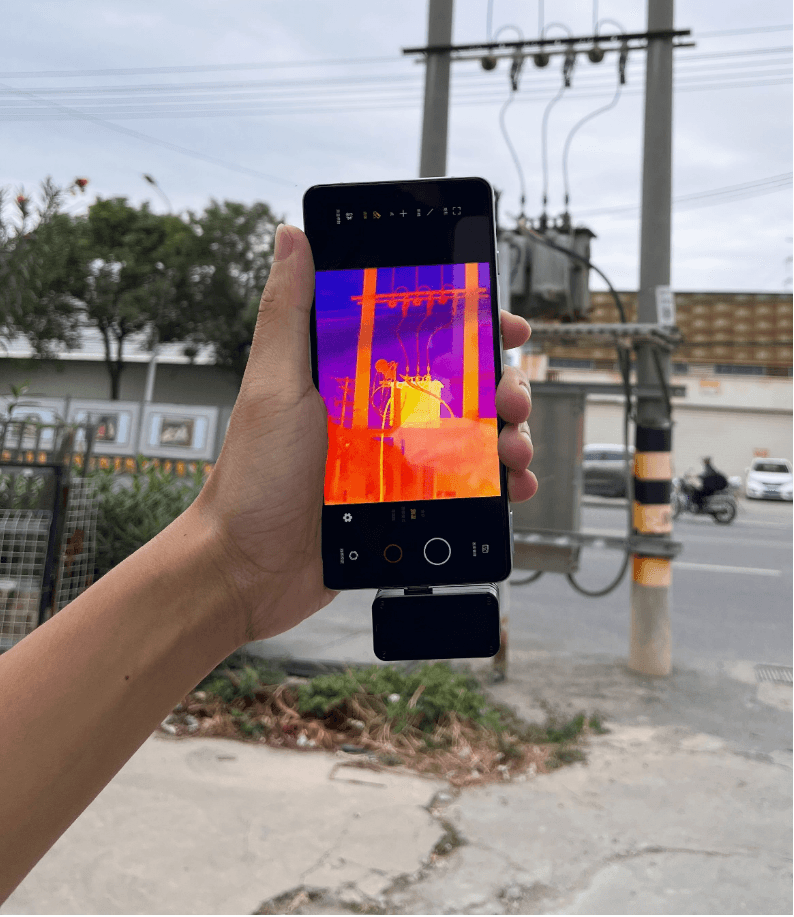

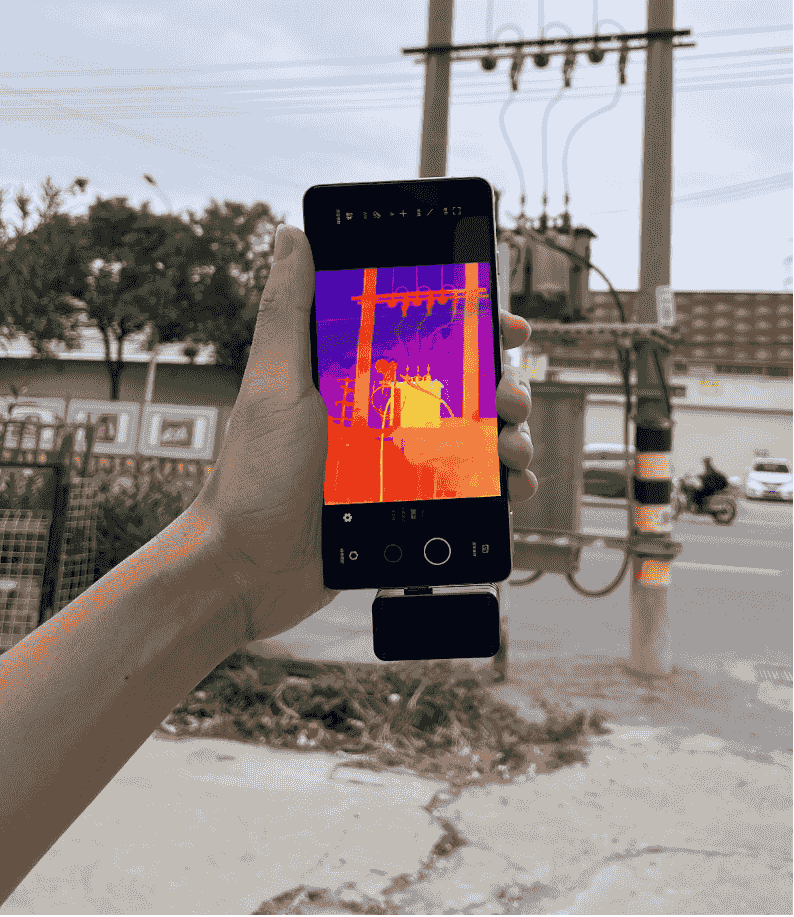

HSD-INV-S3 mobile phone thermal imager
Real-time temperature measurement + offline temperature measurement – dual-mode intelligent temperature measurement, more flexible generation of professional temperature analysis reports, organized and professional data management,
including a patrol cloud platform version, for more efficient team collaboration.1. State Energy Group·Sichuan Nanyahe Yele Hydropower Station

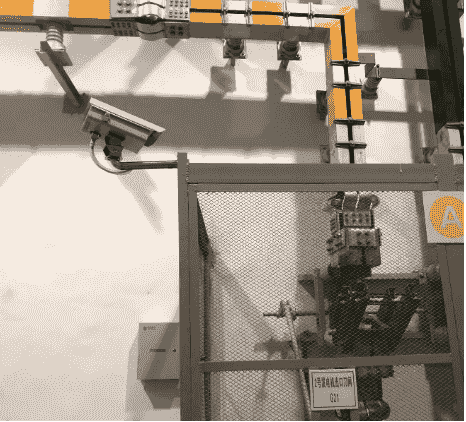

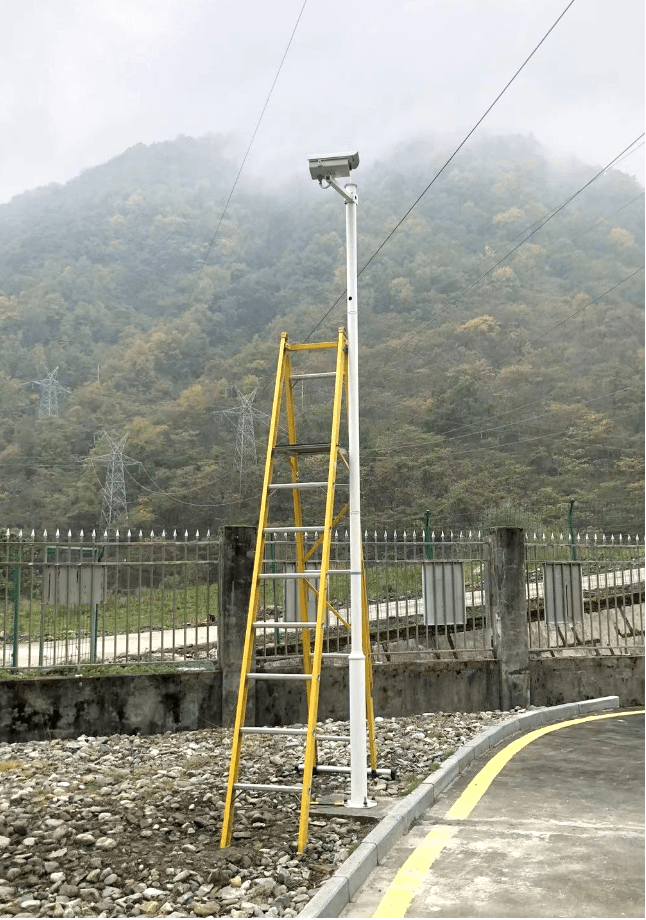

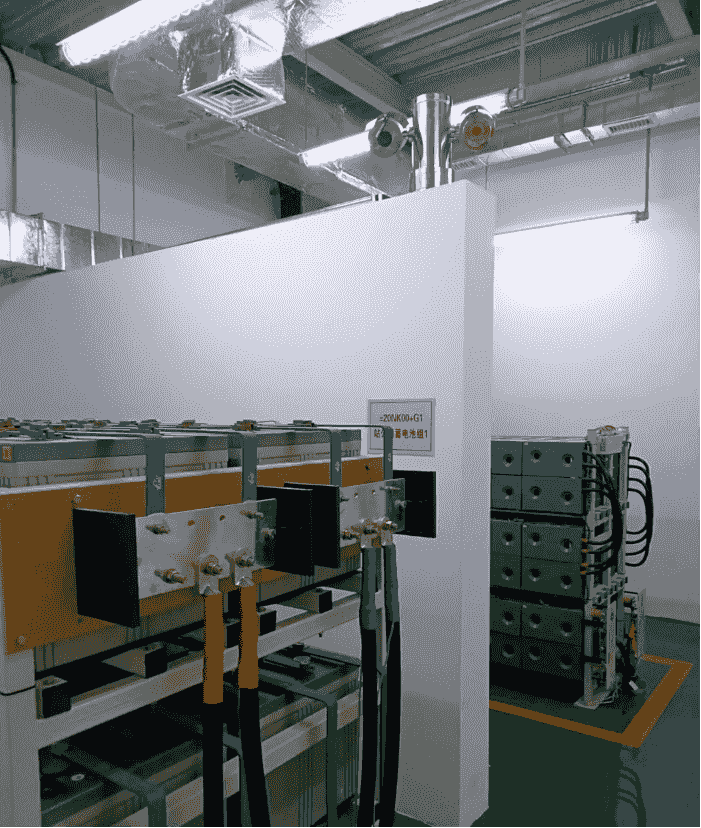

- This online intelligent monitoring project for the primary electrical equipment of the Yele Hydropower Station adopted a variety of product selections, including Type A, Mini, and RT, to conduct real-time monitoring of indoor and outdoor scenarios.

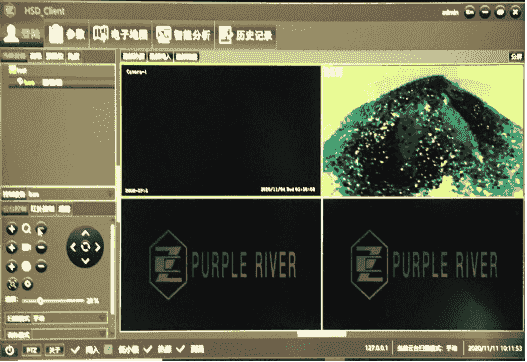

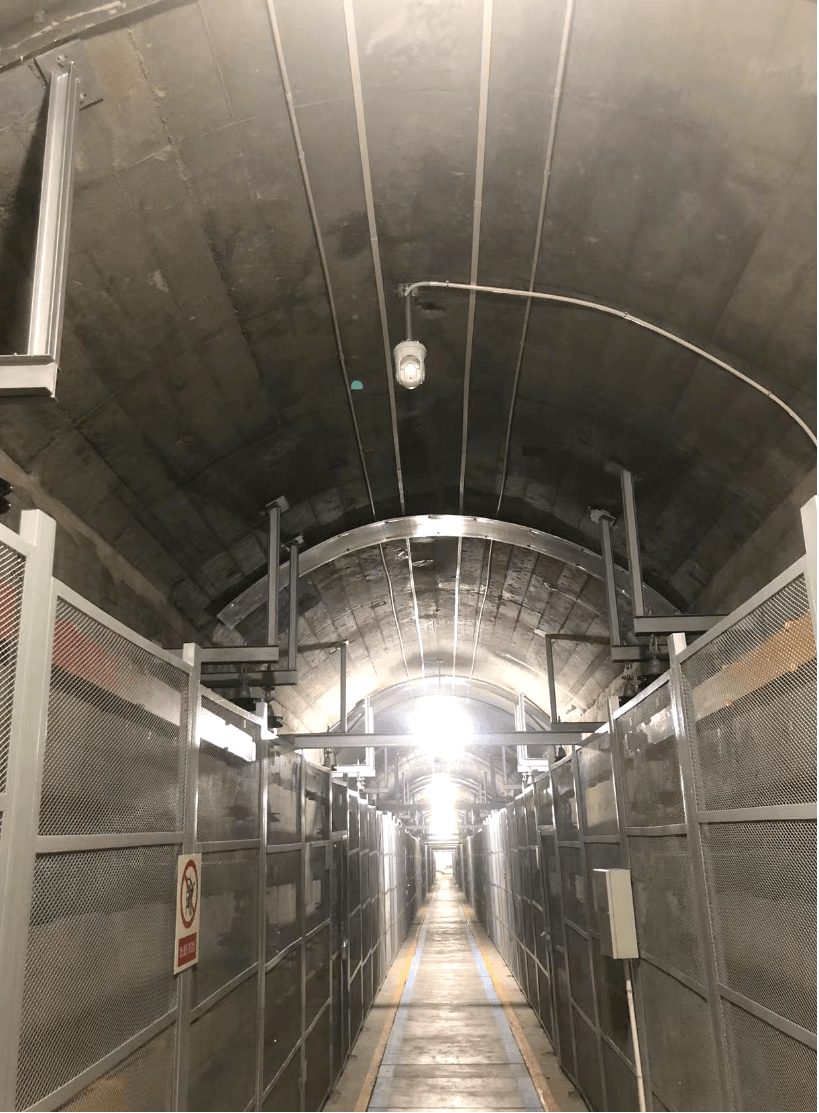

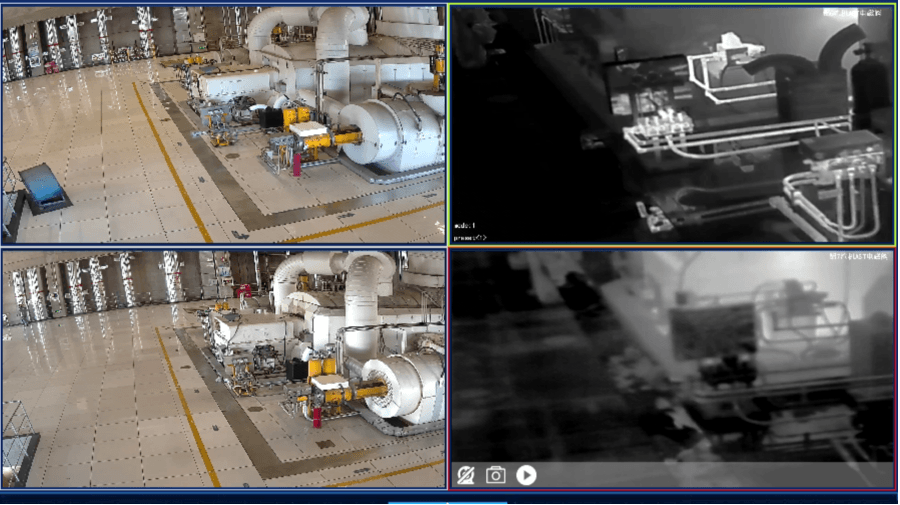

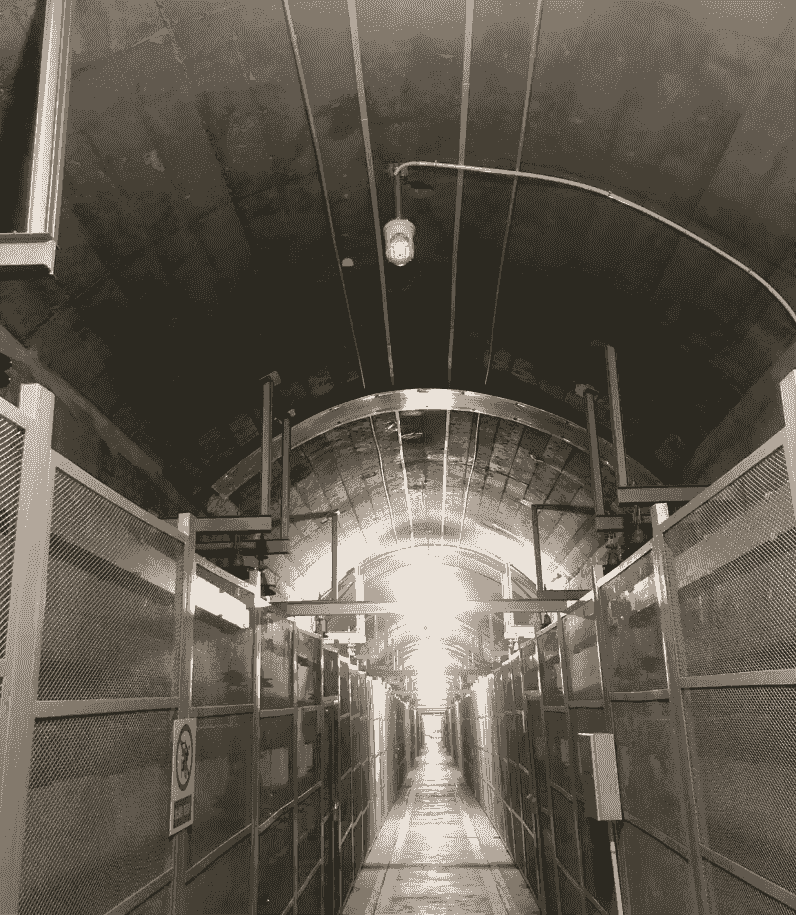

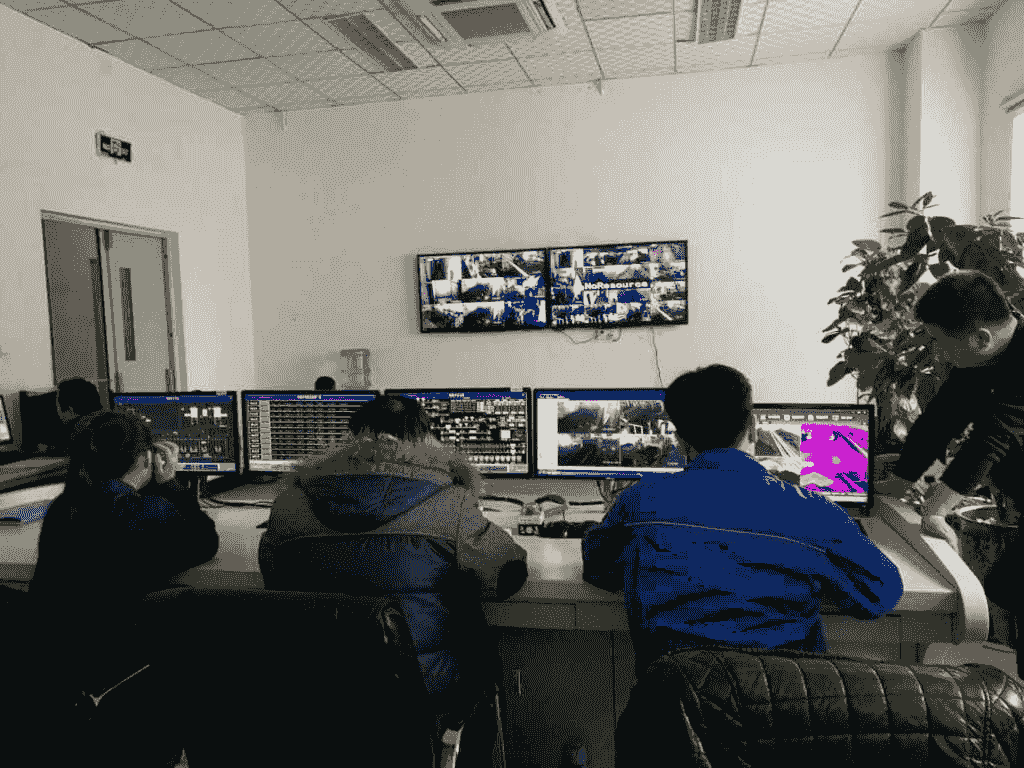

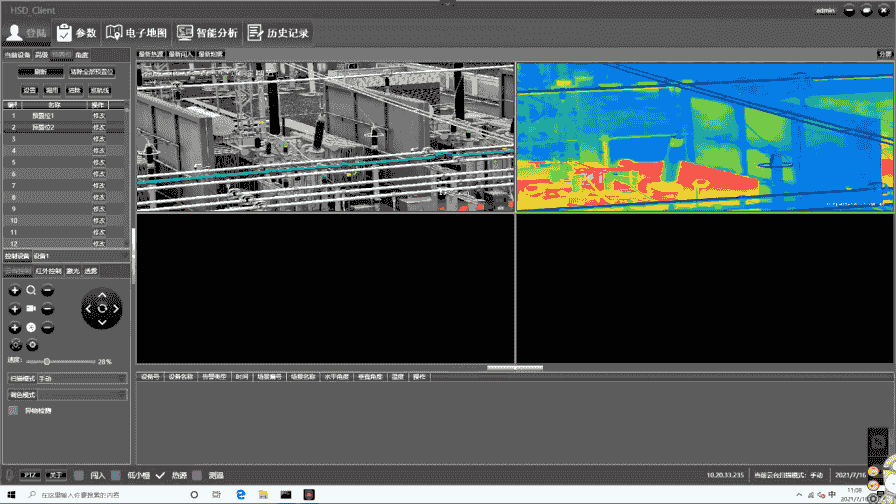

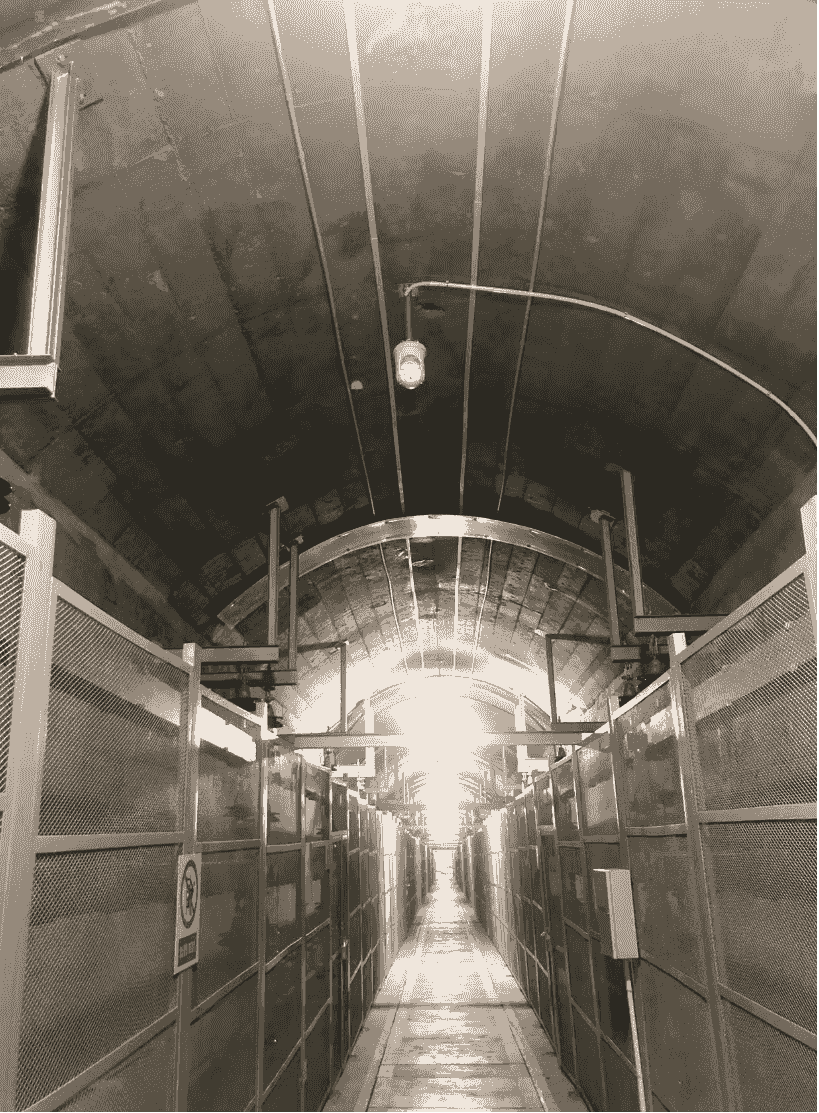

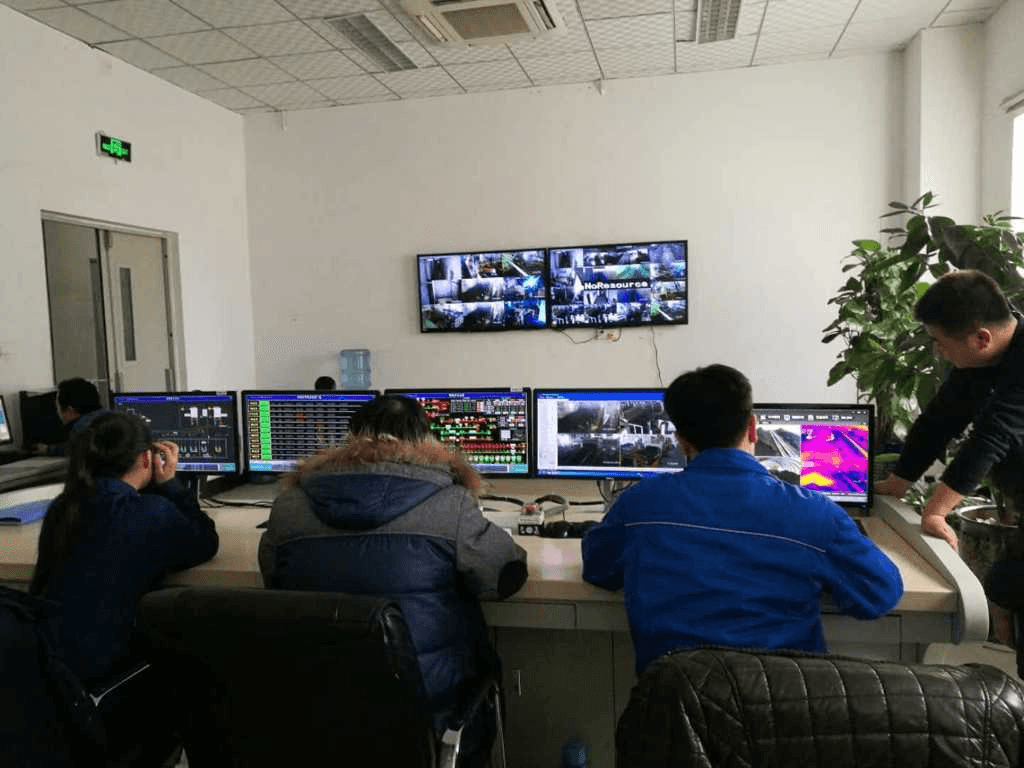

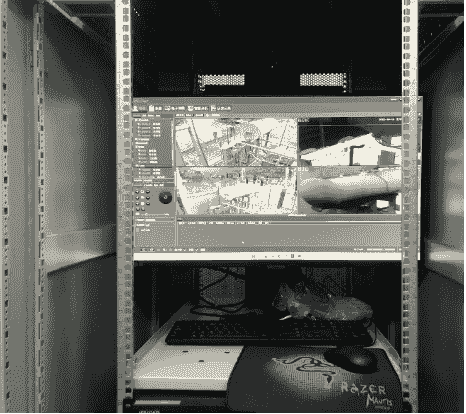

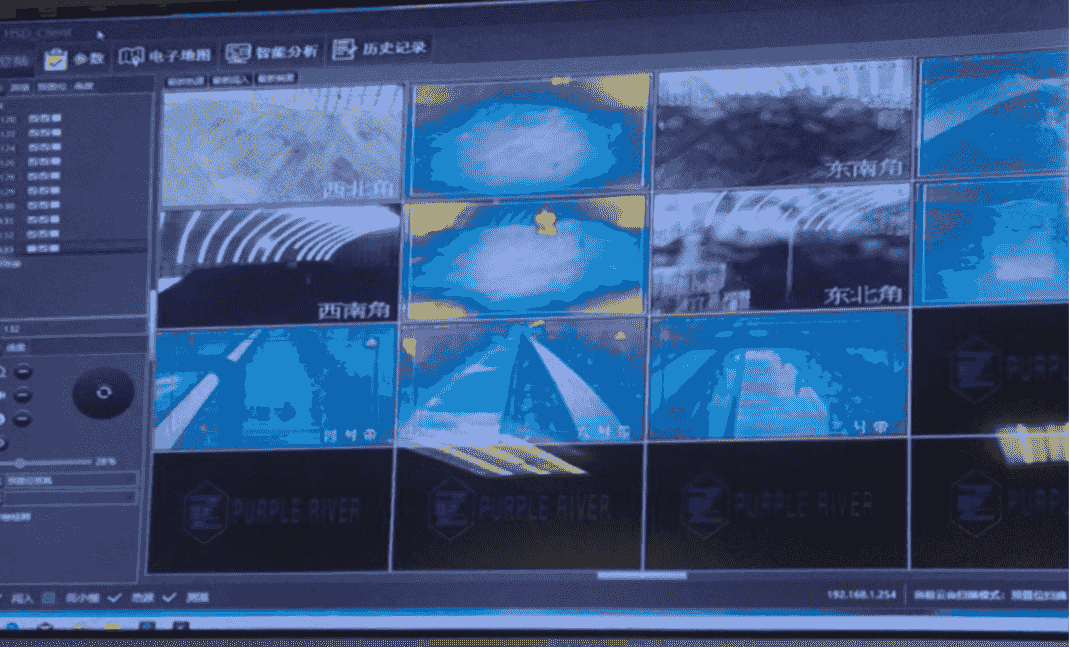

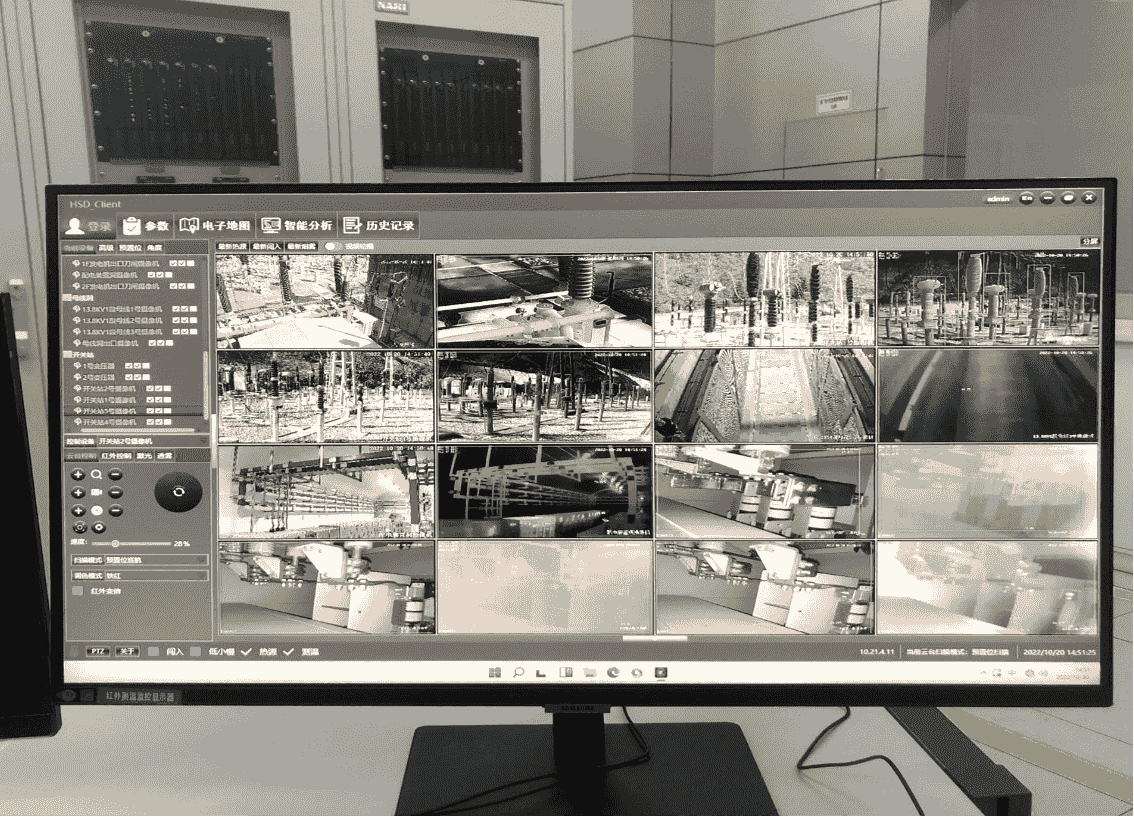

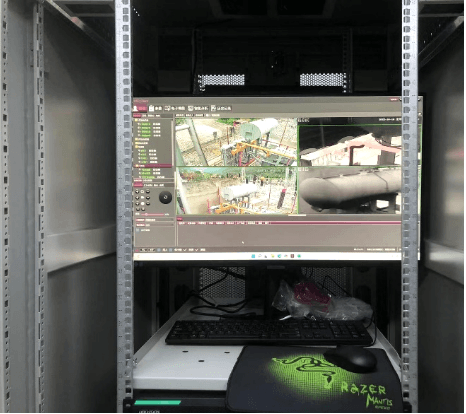

- The HSD-INV system provides 24/7 monitoring of primary electrical equipment, including generator sets, power distribution units, busbar tunnels, and switchyards. Staff can simultaneously view and manage all monitoring areas through a client platform.
- The HSD-INV system can promptly detect and locate thermal defects in equipment, effectively helping to reduce the overall failure rate of the power system and ensure safe operation.
State Energy Group
State Energy Group
State Energy Group
State Energy Group
State Energy Group
State Energy Group
2. A substation in Sichuan Province

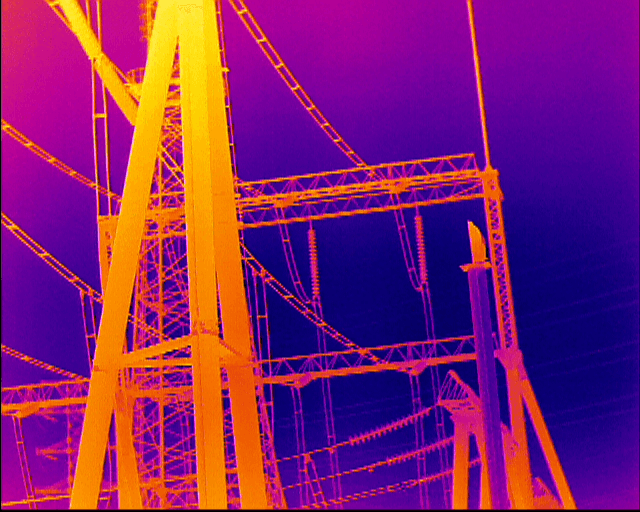

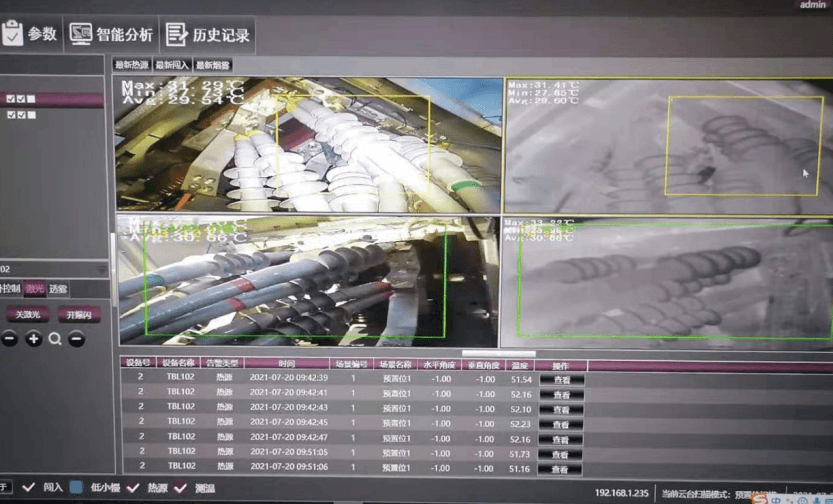

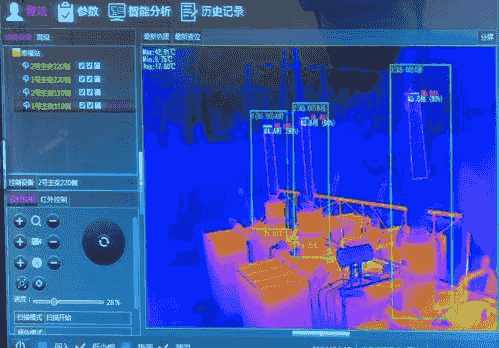

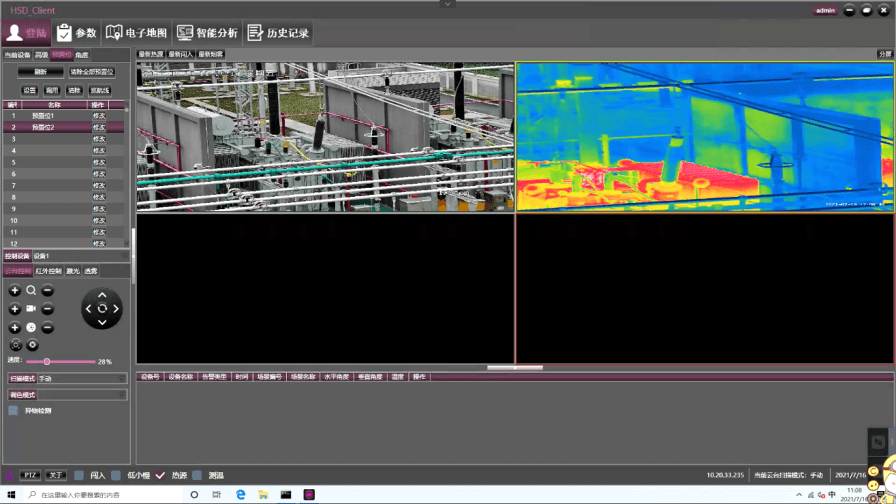

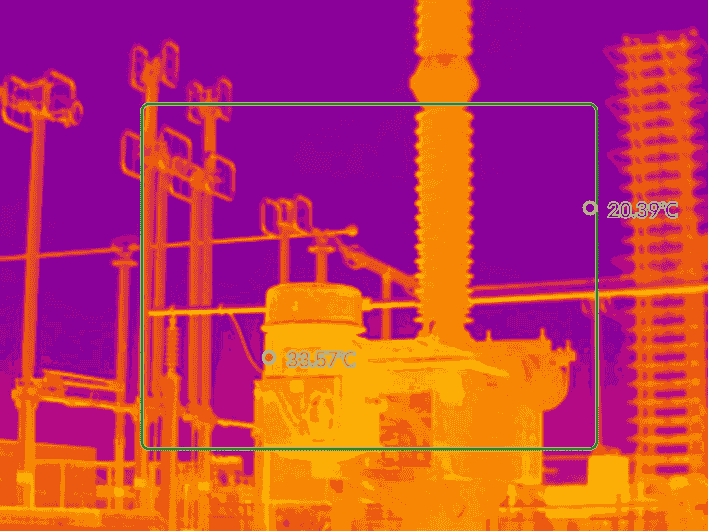

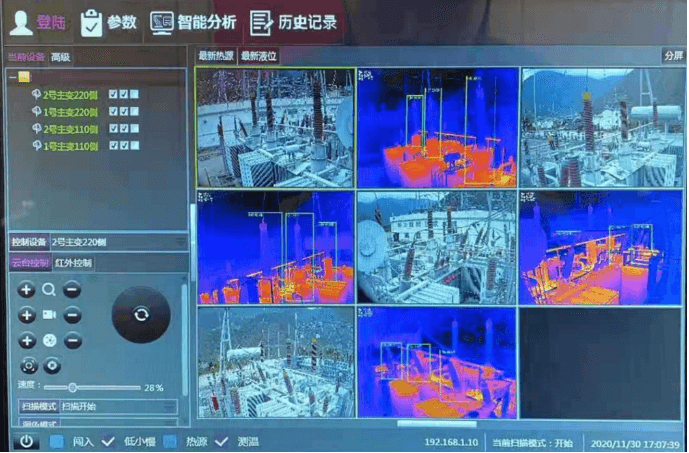

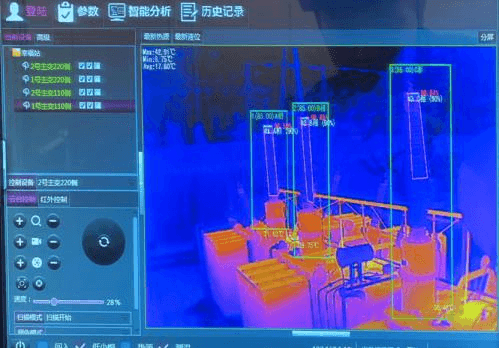

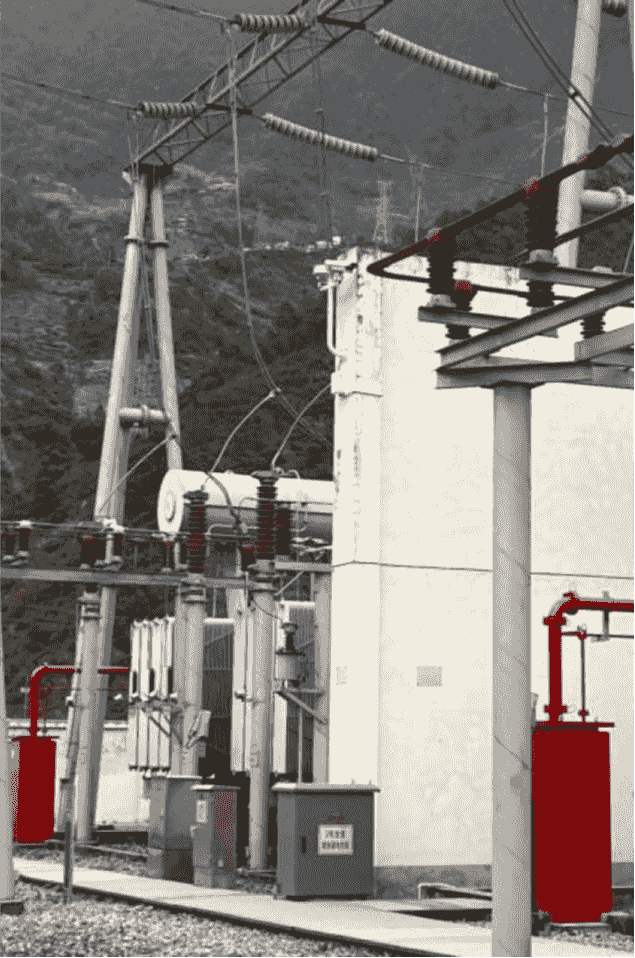

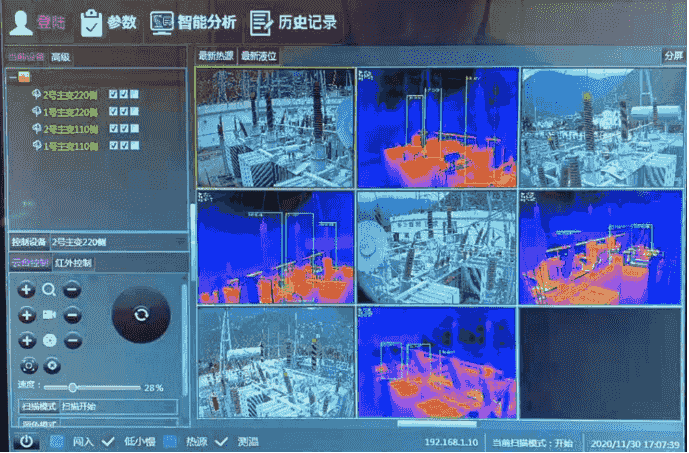

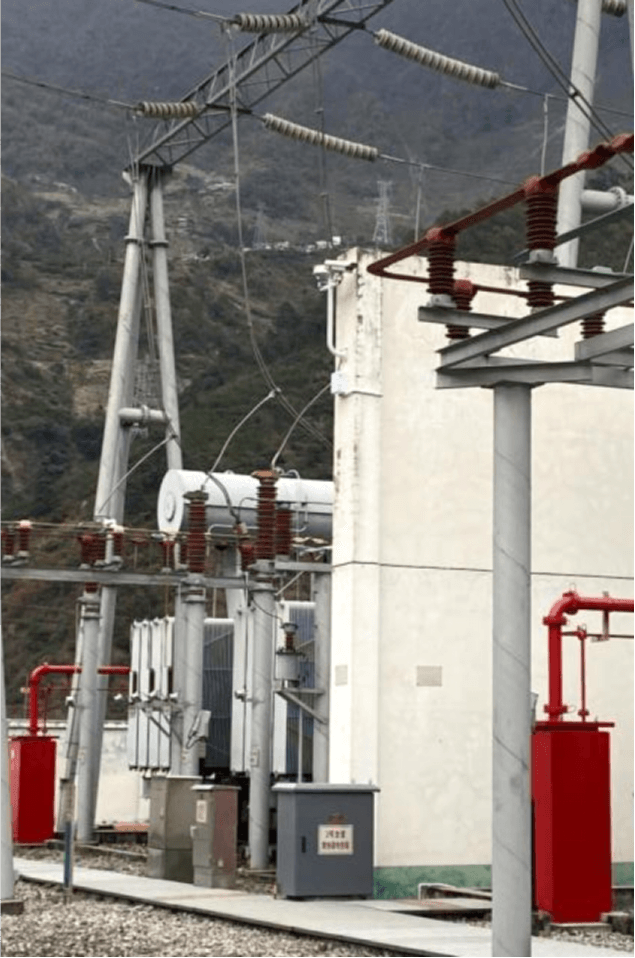

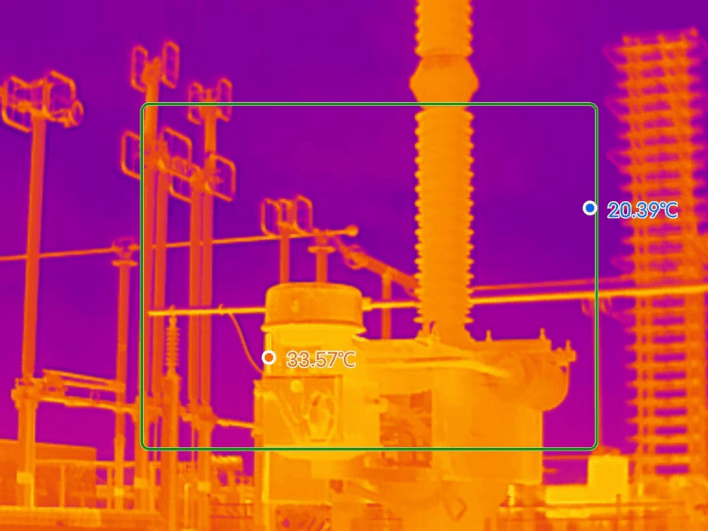

The system provides non-contact online early warning monitoring for main transformer appearance defects, bushing temperature, and oil level within substations. As shown in the image, the HSD-INV system intelligently performs zoned temperature measurement on transformer bushings, independently analyzing and managing different temperature measurement points within the same monitoring area, resulting in more precise and targeted temperature management.

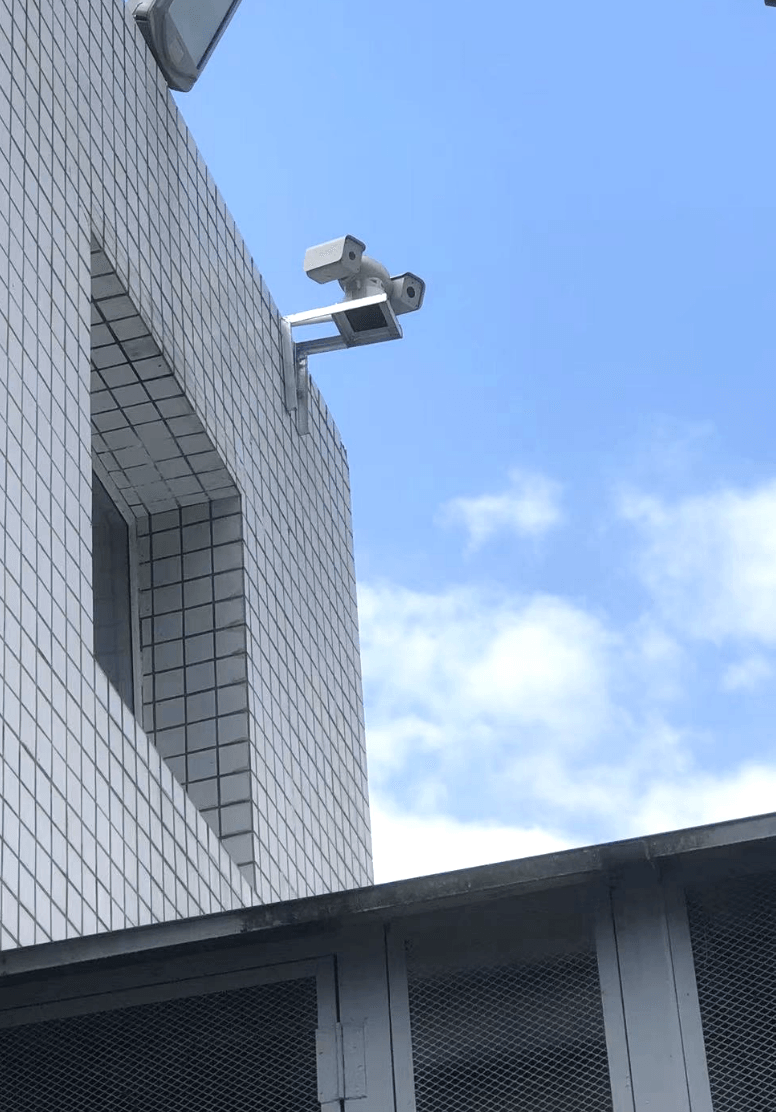

Sichuan · A substation
Sichuan · A substation
Sichuan · A substation
Sichuan · A substation
3.Anshun Converter Station, China Southern Power Grid Ultra-High Voltage Transmission Company

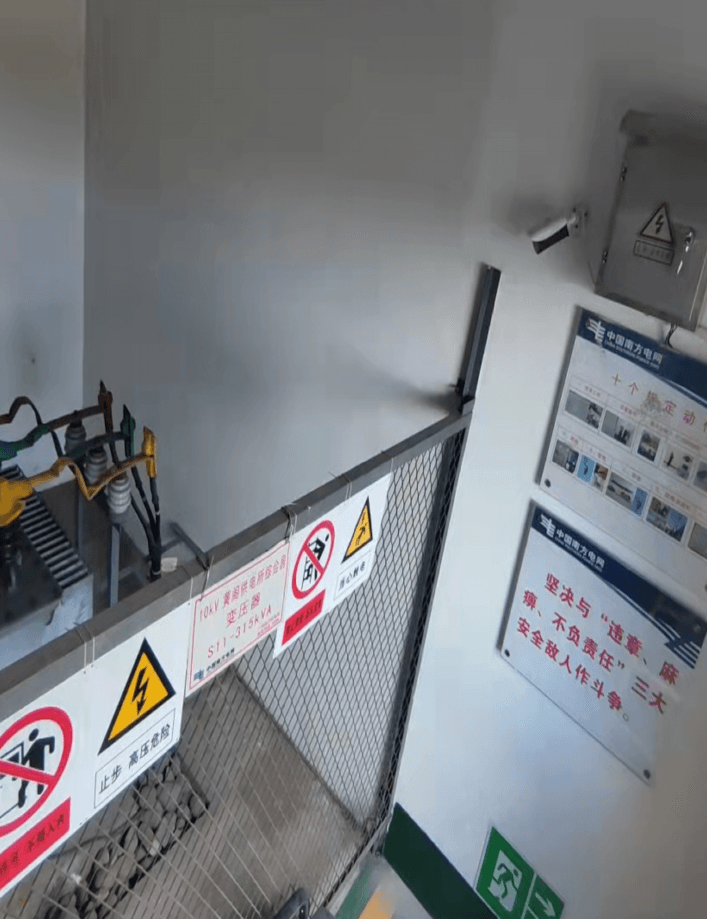

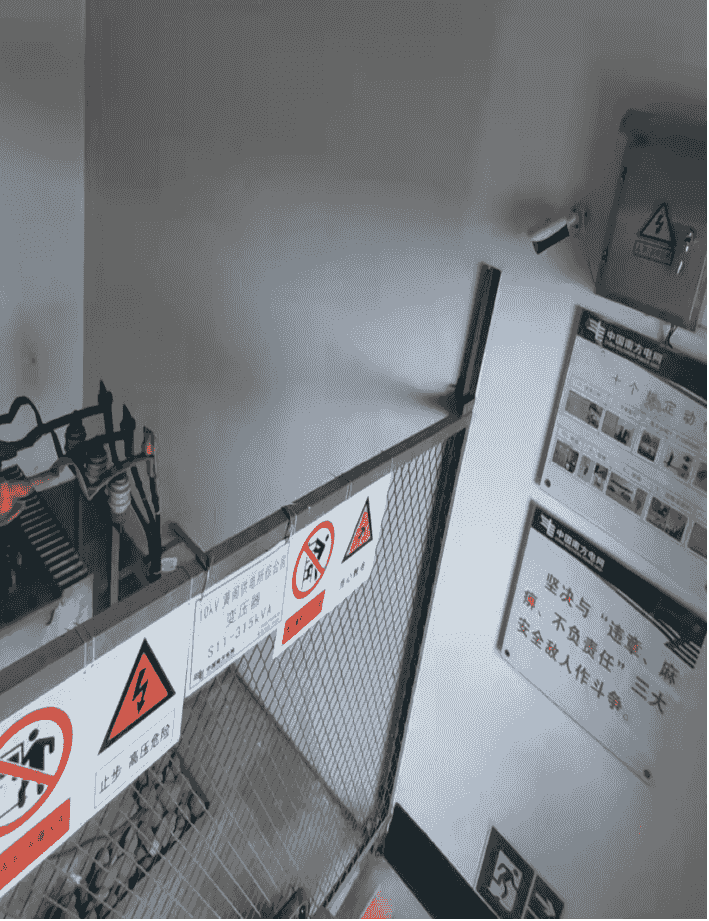

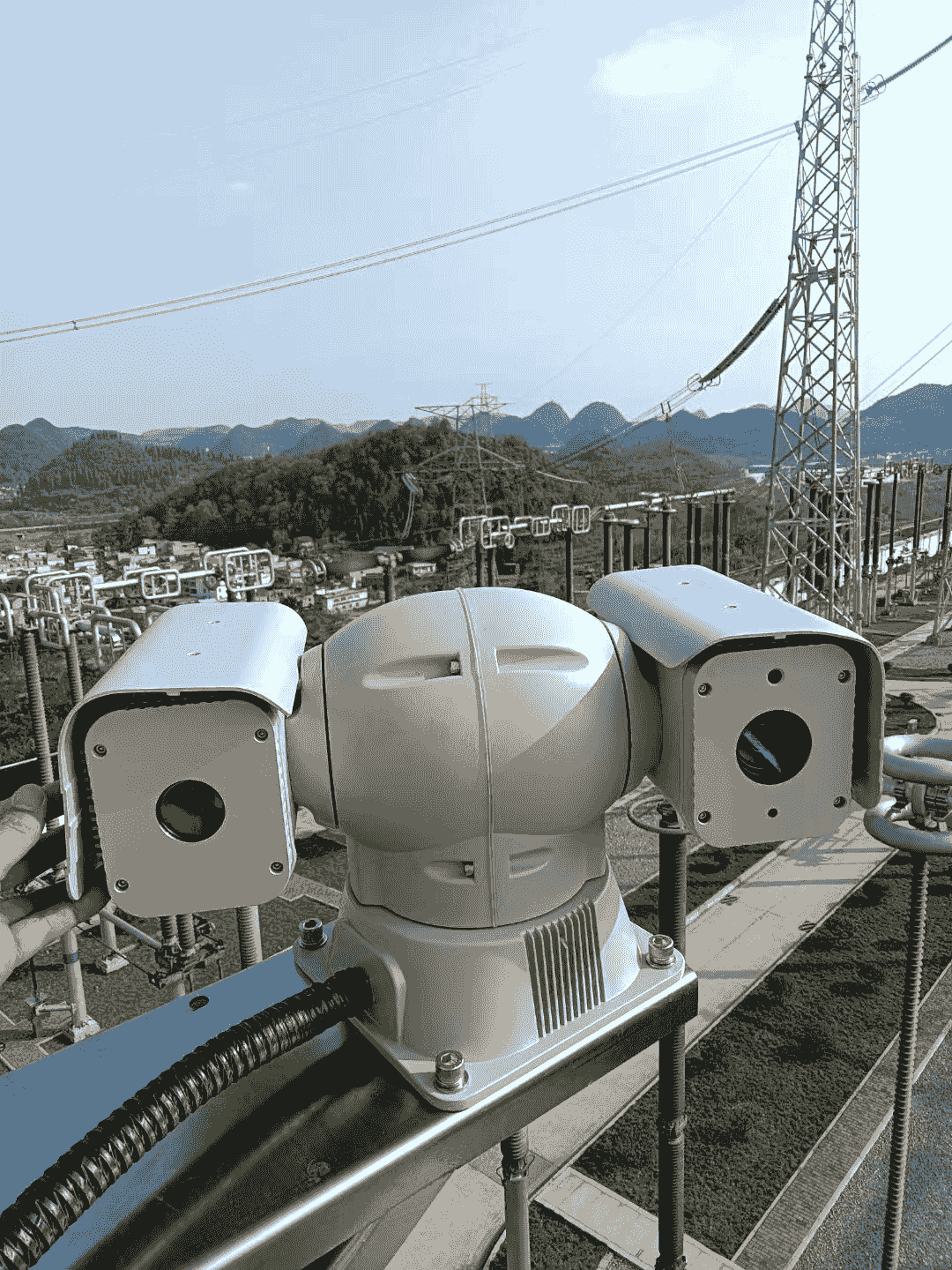

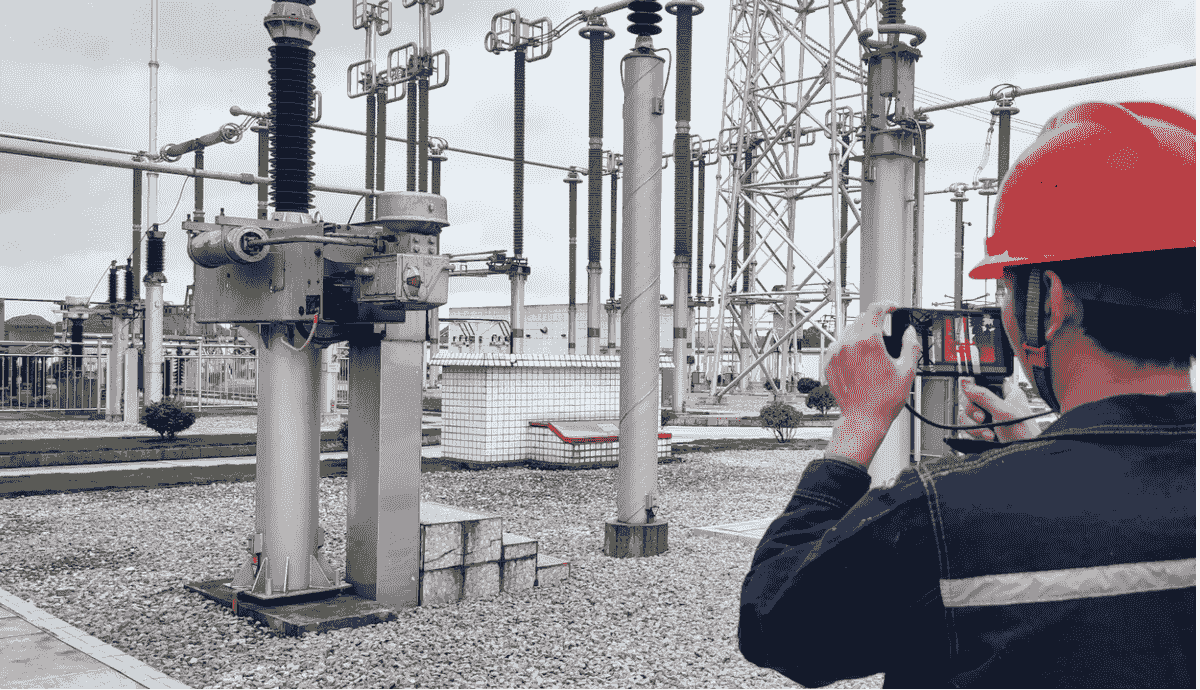

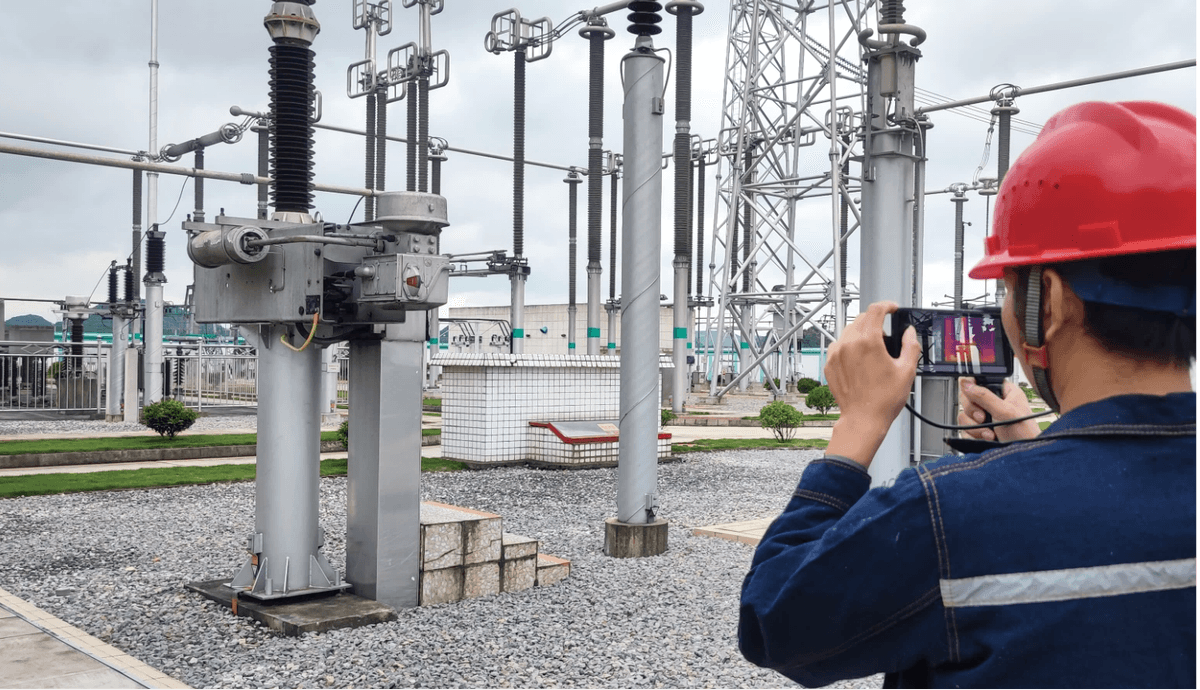

Real-time monitoring of thermal anomalies in critical nodes such as filters and cables within the converter station is implemented to prevent equipment failures or cable fires. This project also introduced intelligent inspection equipment—the HSD-INV-S3 mobile thermal imager—to assist staff in conducting efficient operation and maintenance, comprehensively safeguarding the safe operation of the converter station.
Anshun Converter Station
Anshun Converter Station
Anshun Converter Station
Anshun Converter Station
Anshun Converter Station
Solenoid valve temperature
Transformer temperature

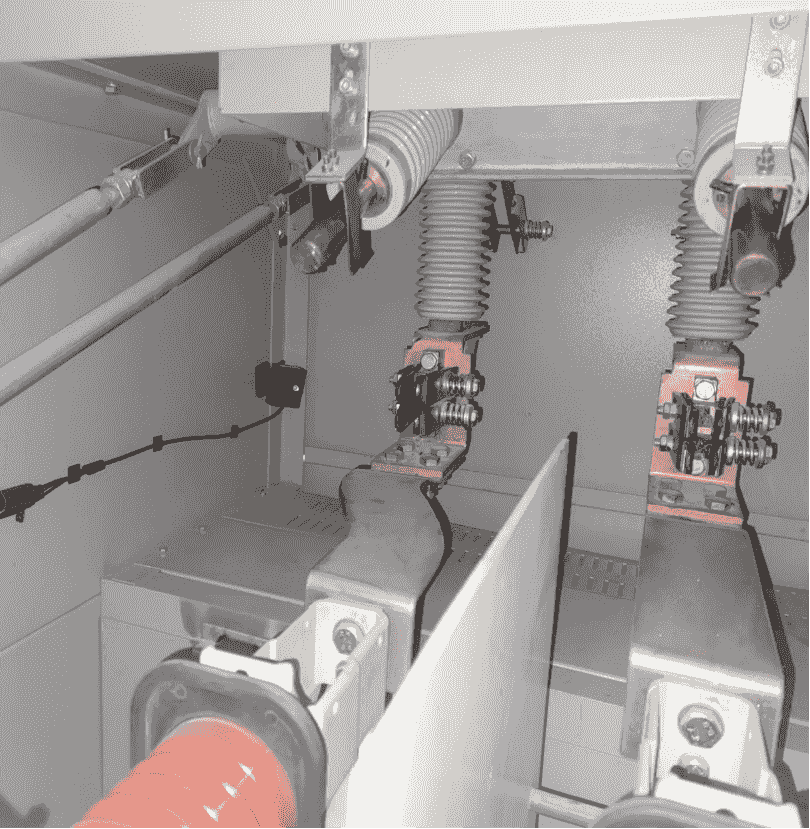

Cabinet Temperature

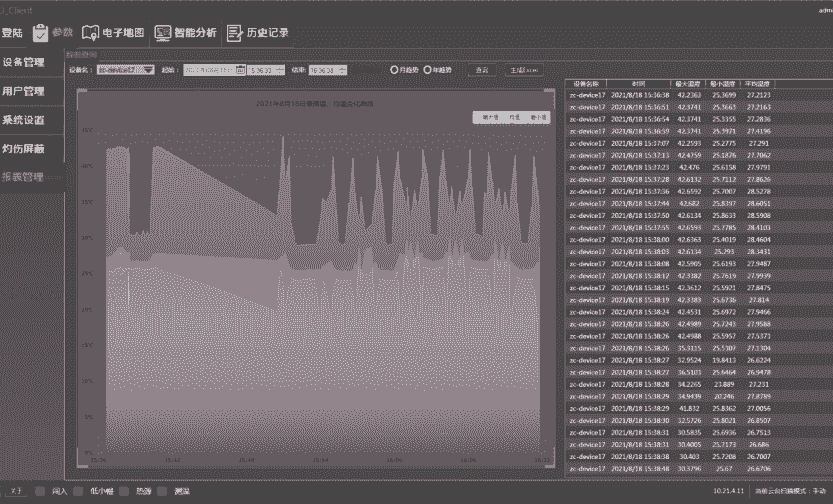

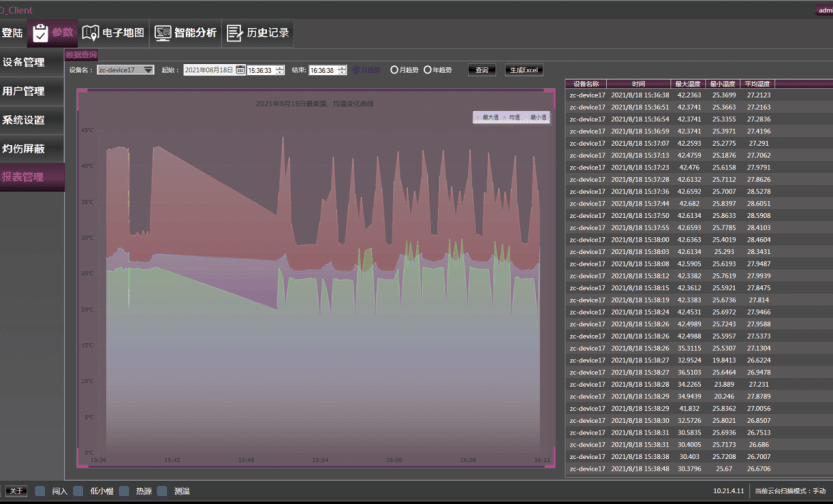

Temperature report management
4.Early warning of spontaneous combustion hazard in coal piles

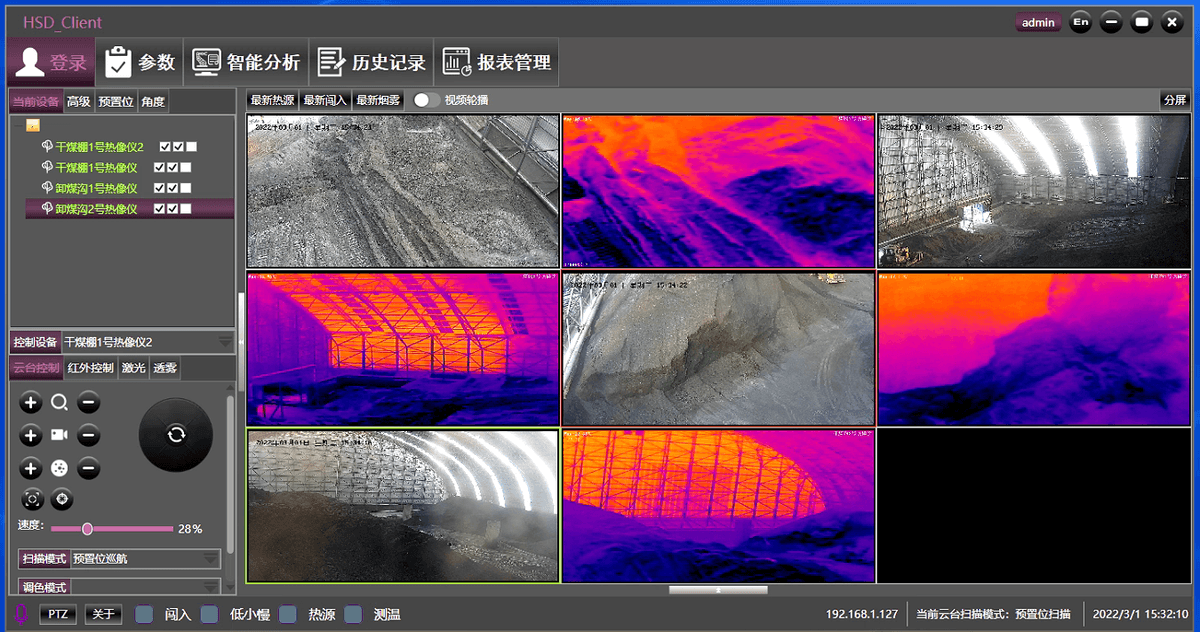

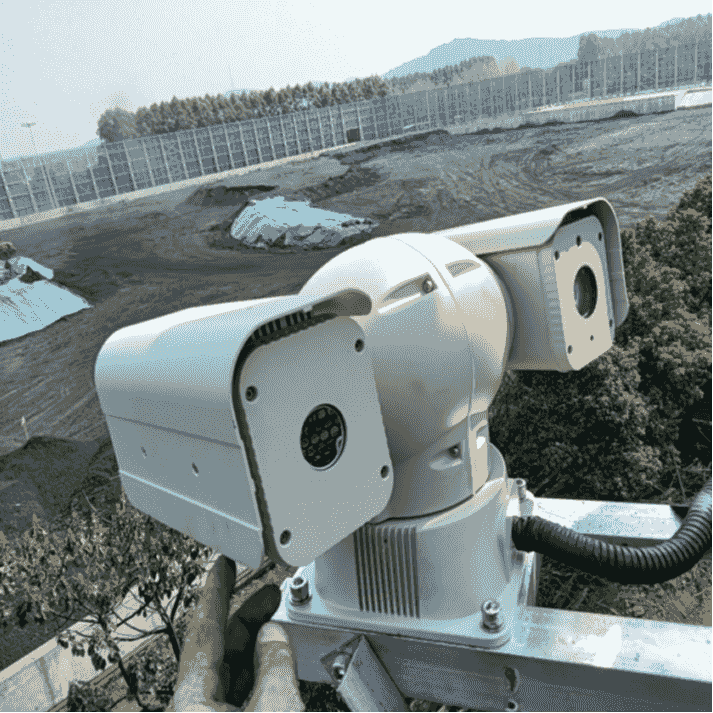

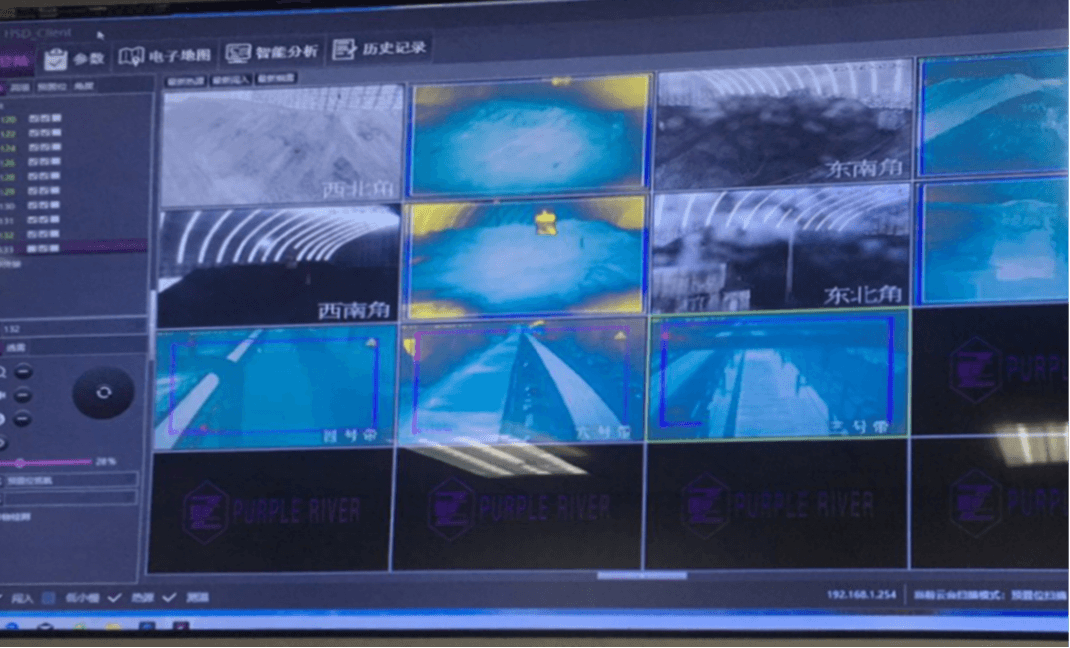

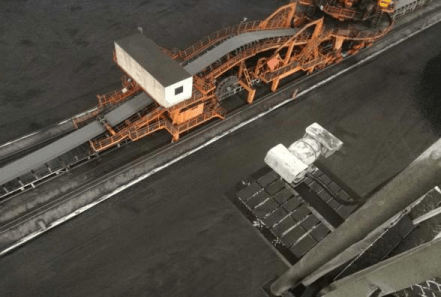

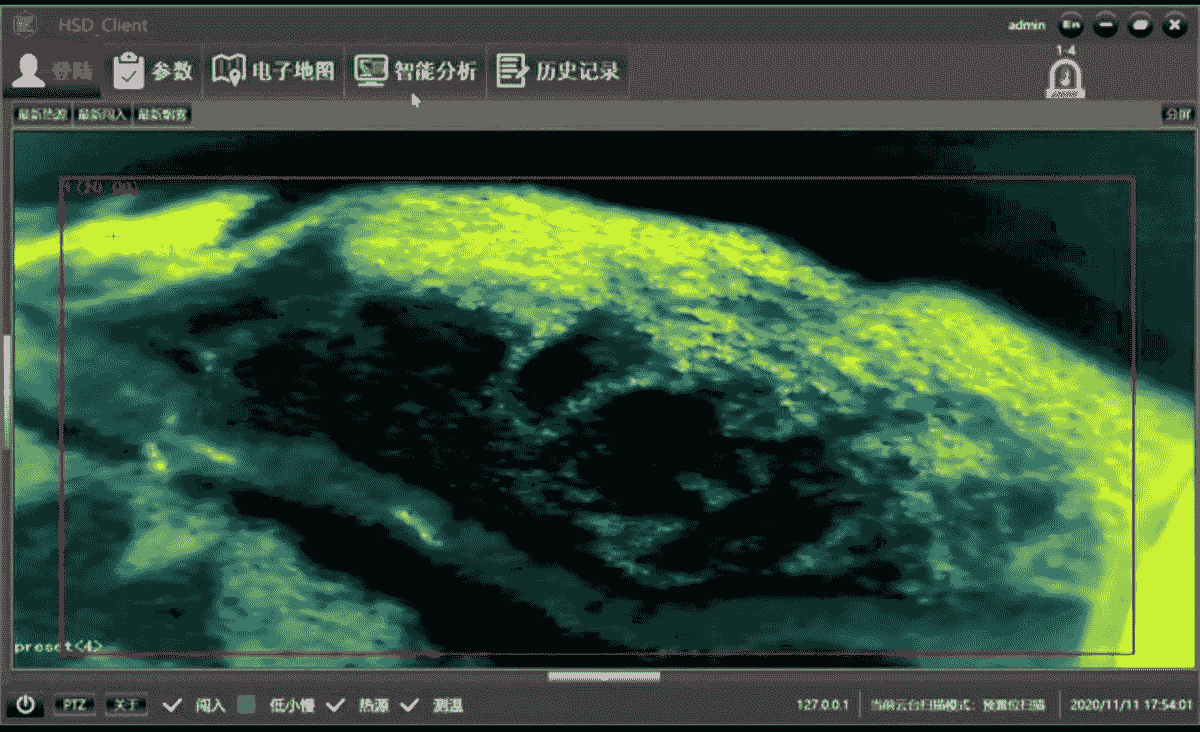

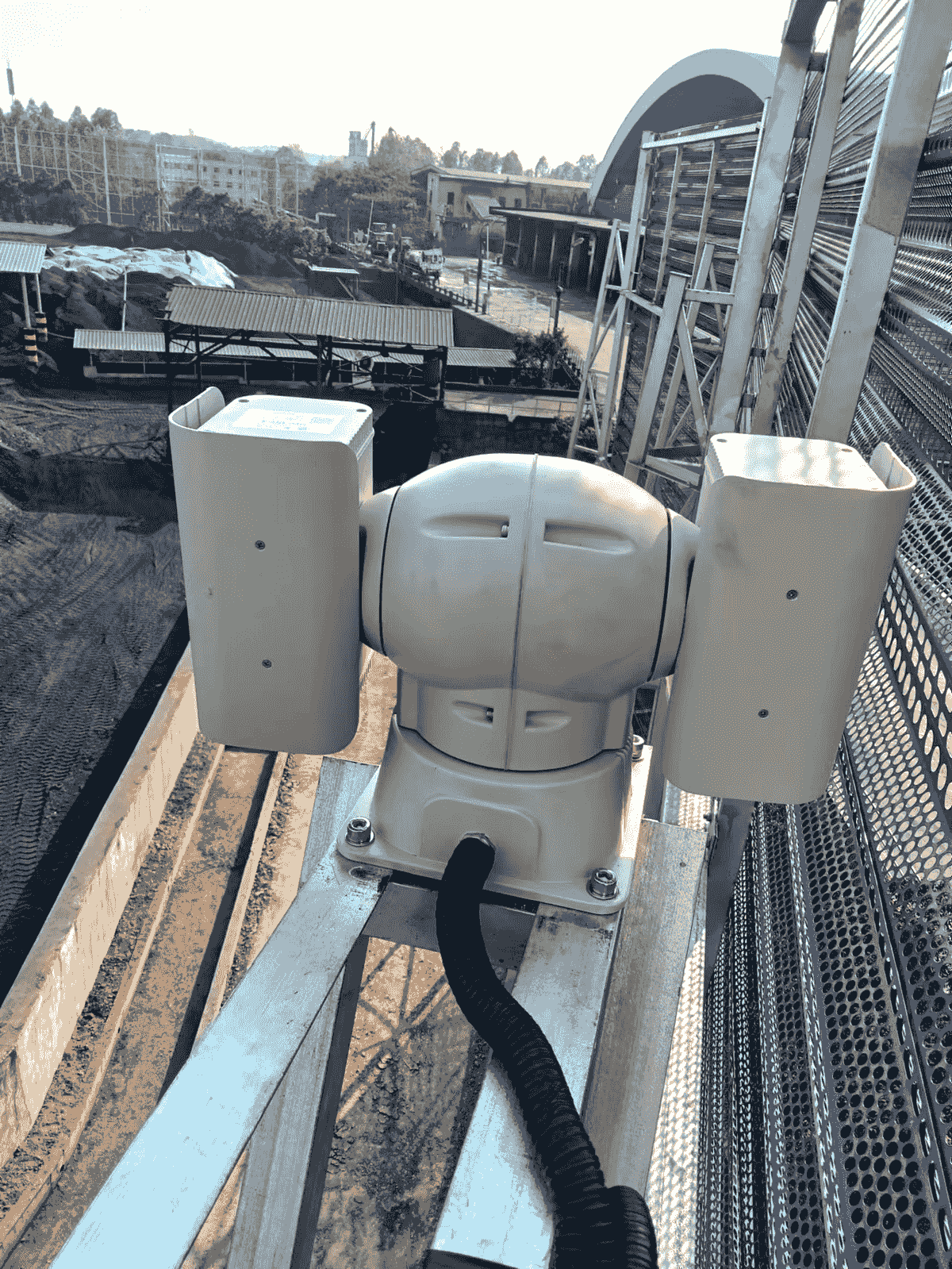

Coal stored for extended periods is prone to internal spontaneous combustion. The equipment, installed in open-air or indoor coal yards, monitors the surface temperature of coal stacks around the clock, detects hidden ignition sources, and prevents spontaneous combustion. It can also monitor for overheating and fires on coal conveyor belts, providing timely warnings of potential hazards and ensuring safe power generation.

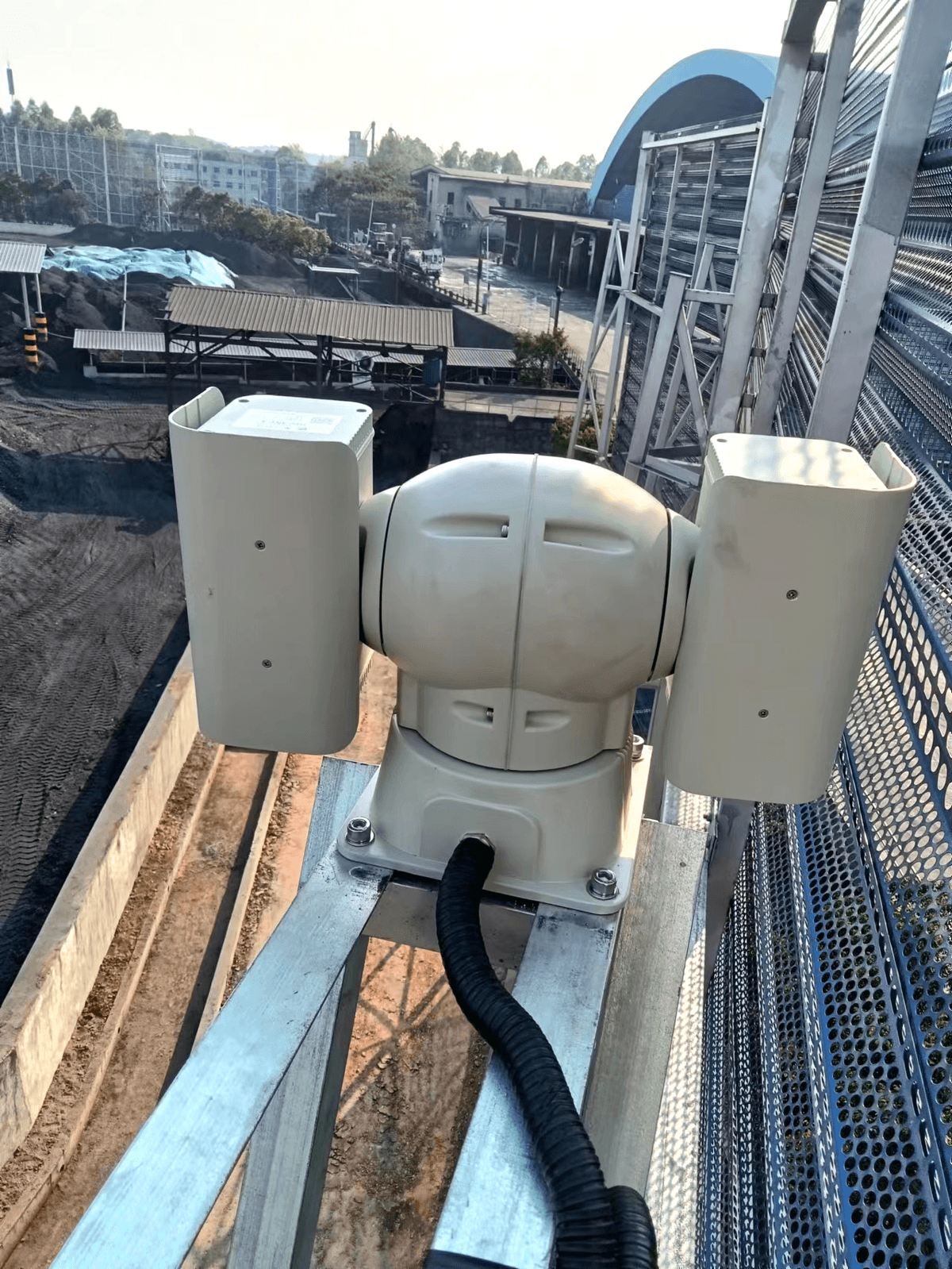

Power Plant, Yiyang
Power Plant, Yiyang
Power Plant, Leiyang
Coal storage silos
Coal storage silos
Coal storage silos

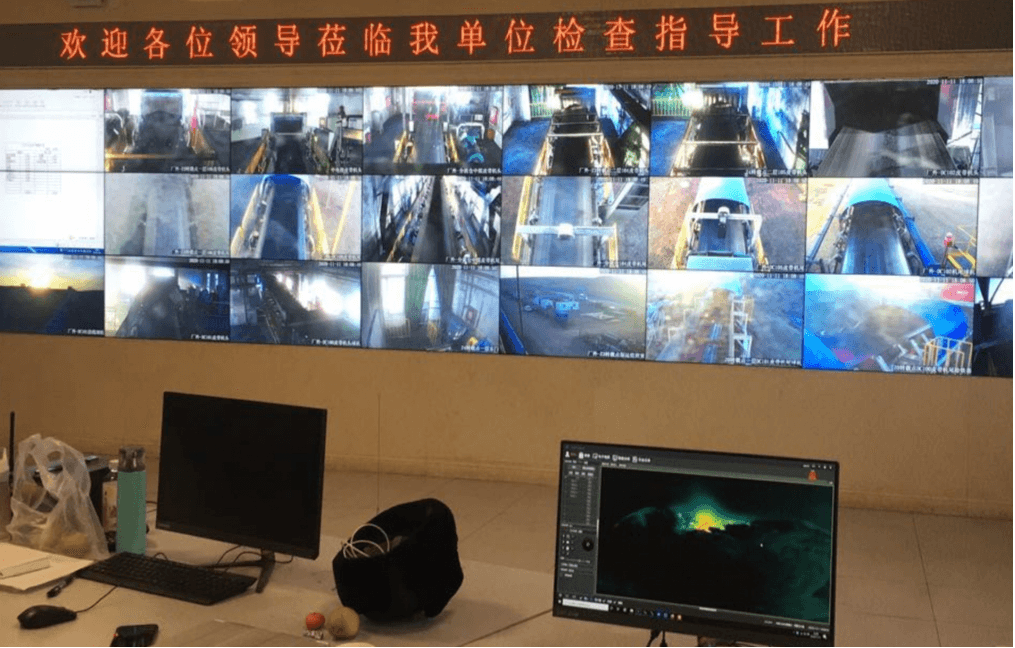

Coal conveying system
Indoor coal yard
Indoor coal yard
5.Power transmission lines protected against wildfires and exposed to external damage

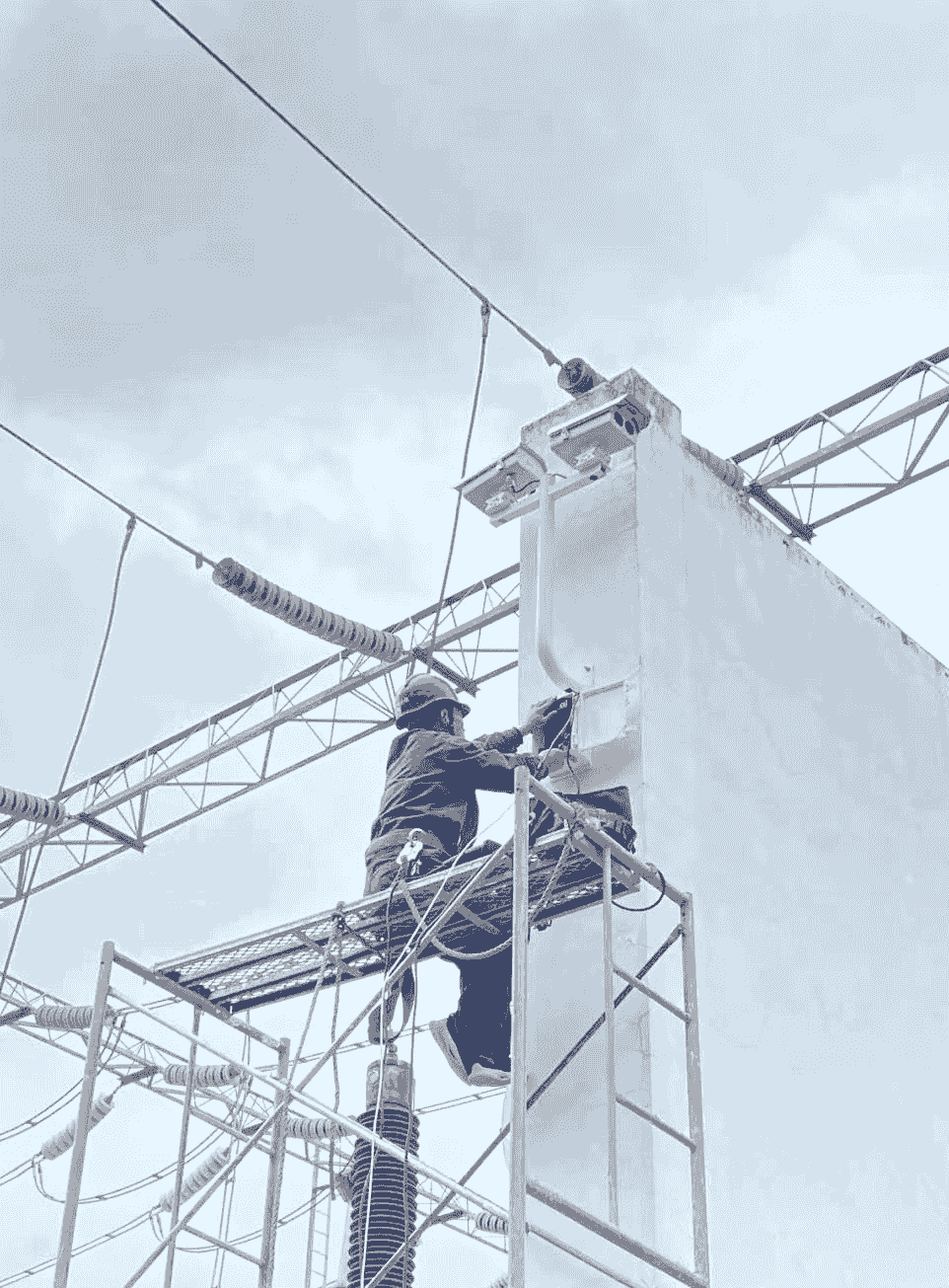

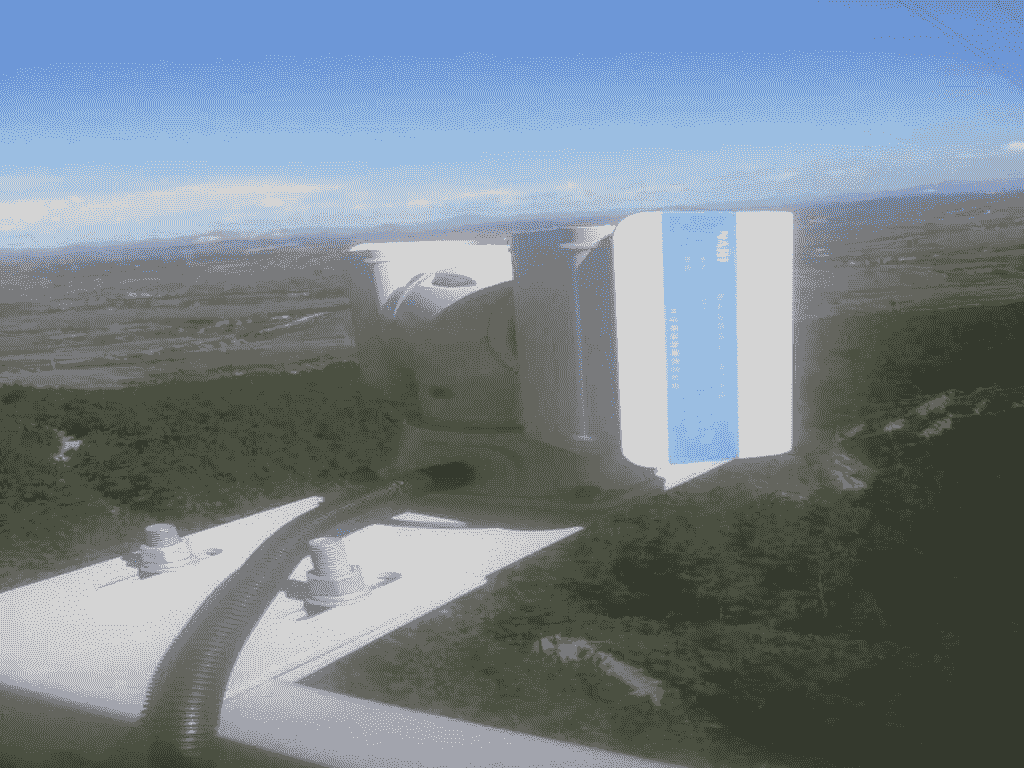

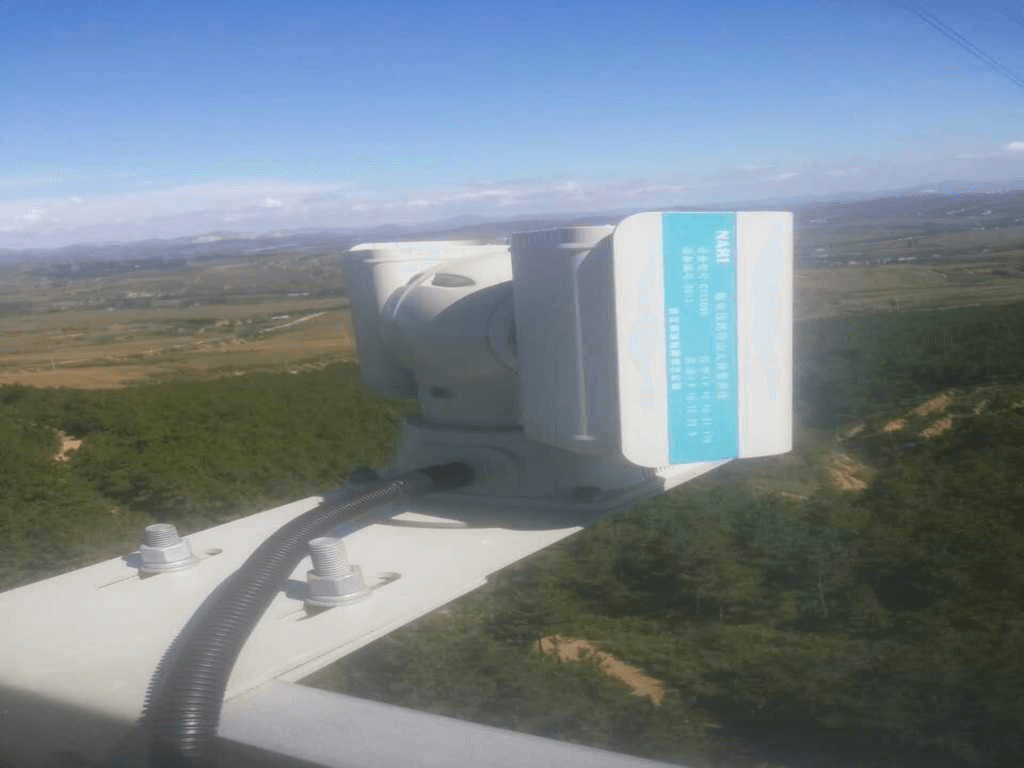

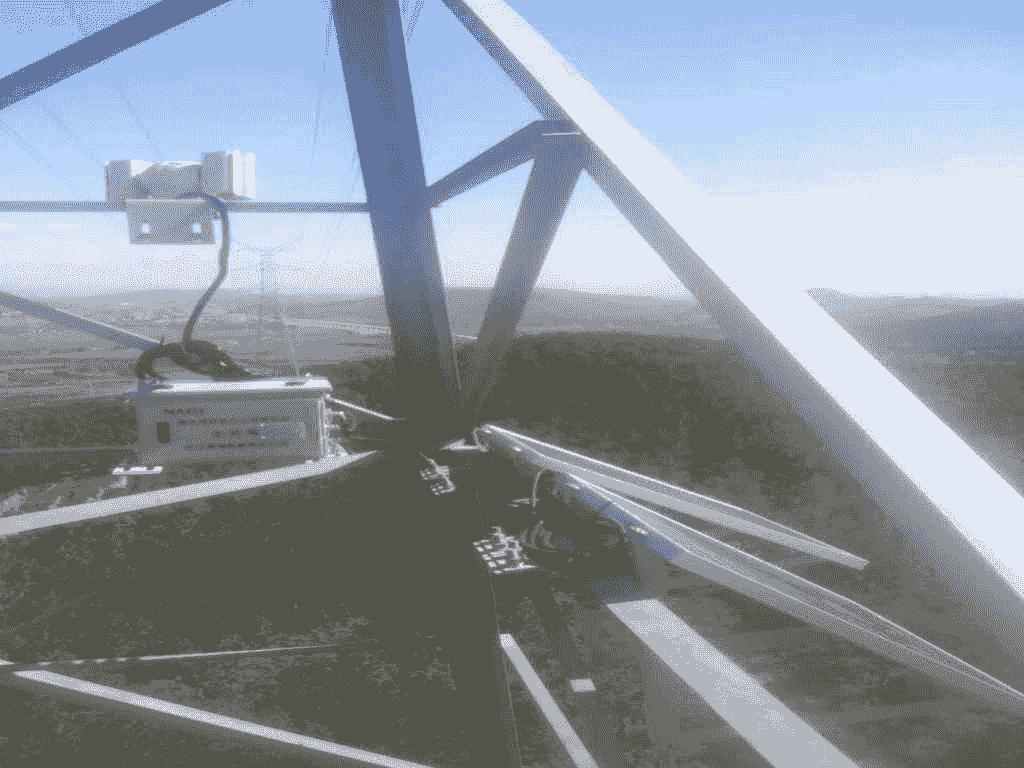

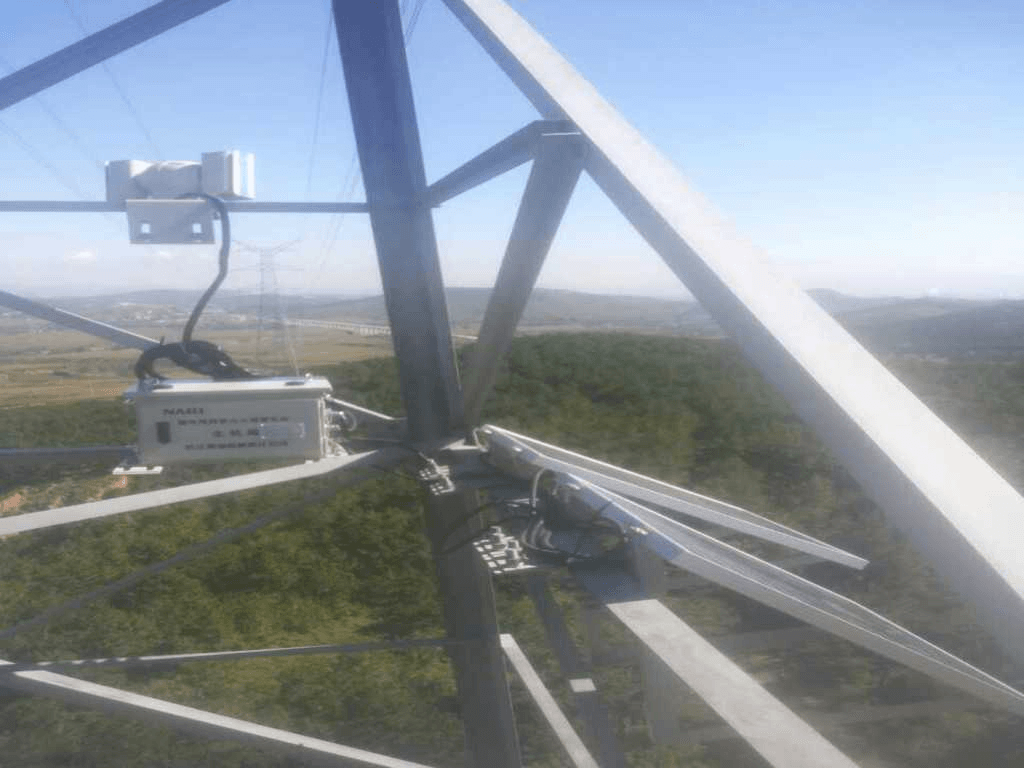

We have delivered a total of 60 sets of HSD-INV intelligent unmanned operation systems on power transmission lines in Liaoning, Sichuan, Chongqing, Gansu and other places. The equipment automatically cruises and scans to detect wildfires along the transmission lines, monitors the operating status of key equipment on the lines, and accurately locates faults; it also has perimeter protection functions such as intelligent event recognition and analysis, and can identify suspicious targets 24 hours a day to prevent theft and external damage.
transmission lines
transmission lines
transmission lines
